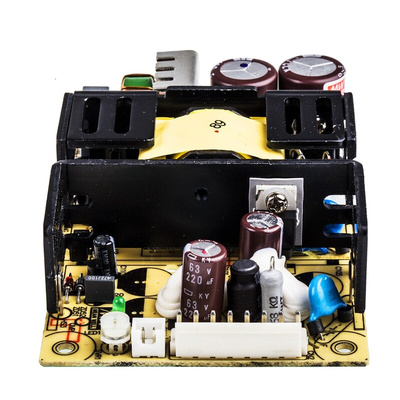

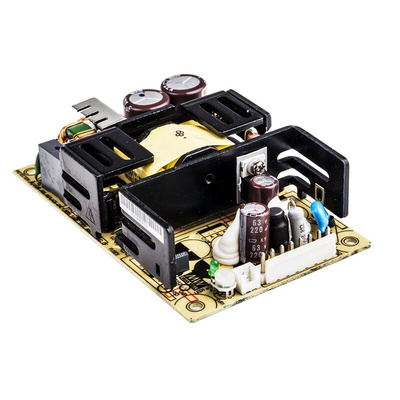

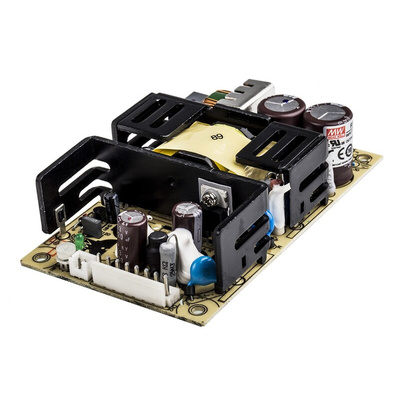

MEAN WELL Switching Power Supply, RPS-75-48, 48V dc, 1.6A, 76.8W, 1 Output, 127 → 370 V dc, 90 → 264 V ac, Источник питания

RPS-75 Series, Universal Input, 3x5inch, Single Output

Miniature size 3x5 inch, high power density
High efficiency, long life and high reliability
Universal input voltage 90-264Vac, 127-370Vdc
Energy saving power supply
No load power consumption <0.75W
Medical safety approved
Low leakage current <200μA
Adjustable output voltage (-5 to 10%)
Harmonic current compliance to EN 61000-3-2
EMC meets EN 55022 Class B
Remote sense
Short circuit, overload and overvoltage protection
Extra peak load rating with 23.5CFM forced air cooling

Note

De-rating above 50°C for free air convection, (40°C for 3.3V & 5V), 60°C for forced air cooling with 23.5CFM. Output current and power stated for free air convection.
MTBF to MIL-HDBK-217F (25°C).

Standards

EN 60601-1, UL 60601-1

Approvals

TUV, CB, UL recognised component for US

RPS-75 Series specification sheet

Declaration Of Conformity
