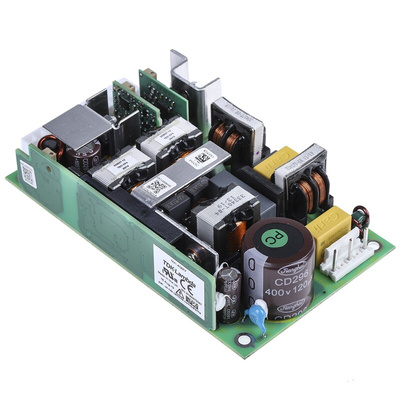

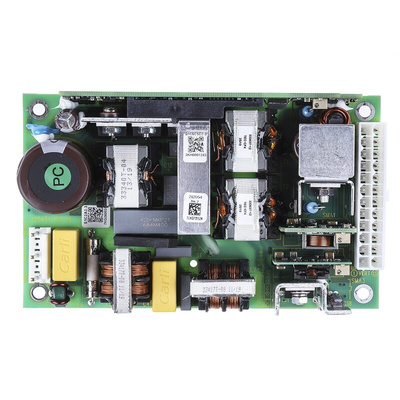

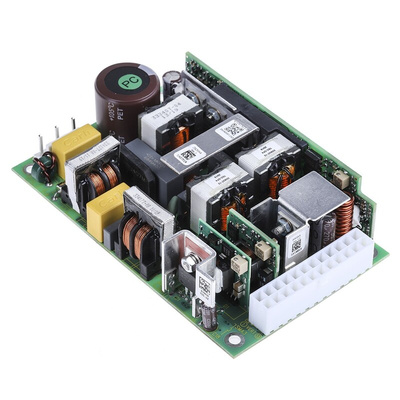

TDK-Lambda Switching Power Supply, NV1-4G5FF, 5 V dc, ±15 V dc, ±24 V dc, 1A, 180W, Quad Output, 90 → 264V ac, Источник питания

175-180W, Universal Input, 3x5 inch, Single & Multi Outputs, NV175 Series

Miniature size 3x5 inch, high power density
Low profile, fits 1U applications
No minimum load
Up to 90% efficiency
Adjustable output voltage on outputs 1, 2 and 3
Medical safety approved to EN 60601-1
Power factor correction to EN 61000-3-2
EMC meets EN 55022-B (as per CISPR.22)
Remote sense on outputs 1 & 2
Short circuit and over voltage and over temperature protection

Note

Output current is with 2m/s air flow. Derate above 50°C to 70°C each output by 2.5% per °C. Ripple & Noise (P-P Max) is 50mV or 1% if greater.

Standards

EN 60950-1, UL 60950-1, CSA 22.2 No. 60950, IEC 60950-1, IEC 60601-1

Approvals

UL recognised component for US, CSA

Approvals

UL recognised component for US, CSA

Standards

EN 60950-1, UL 60950-1, CSA 22.2 No. 60950, IEC 60950-1, IEC 60601-1
