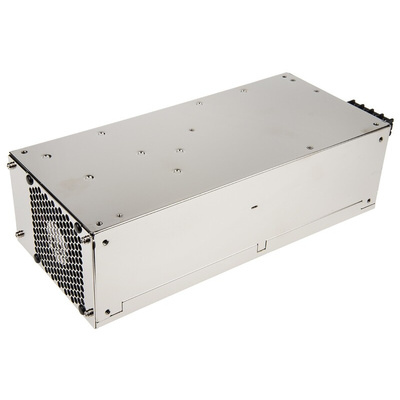

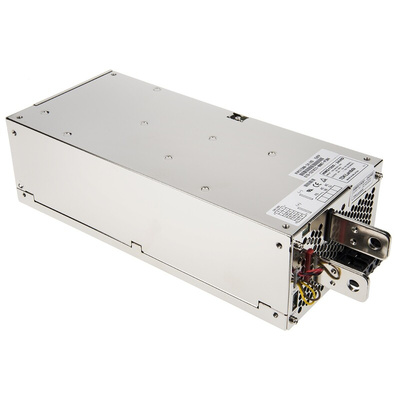

TDK-Lambda Switching Power Supply, HWS1500-24/HD, 24V dc, 70A, 1.5kW, 1 Output, 120 → 330 V dc, 85 → 265, Источник питания

TDK-Lambda Switch Mode Power Supply

The TDK-Lambda HWS1500 series 1500W single output AC to DC embedded switch mode power supply has an output current rating of 70A at 24VDC. It has a universal input supply voltage rating from 85VAC to 265VAC and 120VDC to 330VDC.
Note:
Dimensions quoted exclude terminal block. Peak load for 10 milliseconds (maximum) on time, 35% duty cycle. De-rate above 50°C.

Features and Benefits

Exceptionally compact, requires typically 50% less space than previous generation products
Heavy-duty power supplies designed to perform reliably in the harshest of environments
LED indicator for power on
Conforms to SEMI F47 (high line AC) requirements for semiconductor manufacturing equipment
Easy installation
Screw terminals
Adjustable output voltage (±20%)
Overvoltage and over current protection
300W to 1500W are enclosed and have built-in fan
High Efficiency
Wide Range AC Input

Applications

Factory automation
Test and measurement
Automated service

Certifications

EN 60950-1
UL 60950-1
CSA 60950-1
EN 50178
EN 61000-3-2 (power factor correction)
EN 55022-B
FCC-B (curve A for HWS1500)
CSA approved

Approvals

UL recognised, CSA

HWS-A_300W-1500W_EN_datasheet
