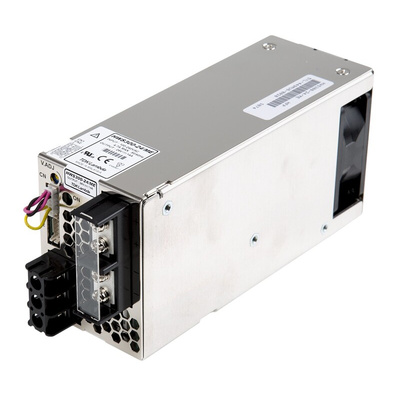

TDK-Lambda Switching Power Supply, HWS300-24/ME, 24V dc, 14A, 336W, 1 Output, 120 → 330 V dc, 85 → 265 V, Источник питания

50W to 300W, Universal Input, Single Output, Medical Approved, HWS-50-300/ME Series

Exceptionally compact, requires typically 60% less space than previous generation products
Medical approvals EN 60601-1, UL 60601-1
Leakage current less than 500μA
LED indicator for power on
Easy installation - screw terminals
Adjustable output voltage (±20%)
Power factor correction to EN 61000-3-2
EMC meets EN 55022-B, FCC-B
Over-voltage and over-current protection
Open frame construction 50 to 150W
300W is enclosed with built-in fan

Note

Dimensions quoted exclude terminal block. Peak load for 10ms max on time, 35% duty cycle. De-rate above 50°C.

Standards

EN 60601-1, UL 60601-1, CSA-C22.2 No. 6011-M90

Approvals

UL recognised, CSA

Approvals

UL recognised, CSA

HWS-A_300W-1500W_EN_datasheet
