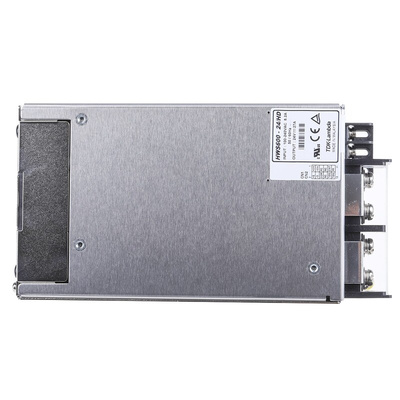

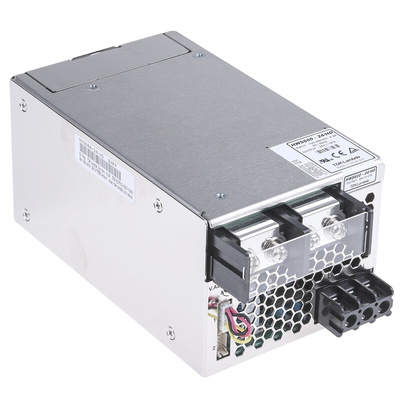

TDK-Lambda Switching Power Supply, HWS600-24/HD, 24V dc, 27A, 648W, 1 Output, 120 → 330 V dc, 85 → 265 V, Источник питания

50W to 1500W, Universal Input, Single Output, Heavy Duty, HWS-50-1500/HD Series

Exceptionally compact, requires typically 60% less space than previous generation products
Heavy-duty power supplies designed to perform reliably in the harshest of environments
Can start up at temperatures as low as -40°C
Conformal coating applied to both sides of the PCB, allowing use adverse environmental conditions
LED indicator for power on
Easy installation - screw terminals
Adjustable output voltage (±20%)
Power factor correction to EN 61000-3-2
EMC meets EN 55022-B, FCC-B (curve A for HWS1500)
Over-voltage and over-current protection
Open frame construction 50 to 150W
300 to 1500W are enclosed and have built-in fan
Meet MIL-STD-810F standards for vibration and shock

Note

Dimensions quoted exclude terminal block. Peak load for 10ms max on time, 35% duty cycle. De-rate above 50°C.

Standards

EN 60950-1, UL 60950-1, CSA 60950-1, EN 50178

Approvals

UL recognised, CSA

Approvals

UL recognised, CSA

HWS-A_300W-1500W_EN_datasheet
