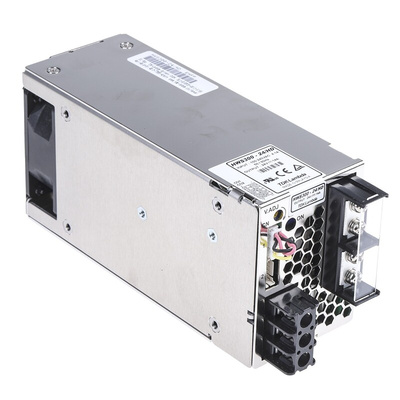

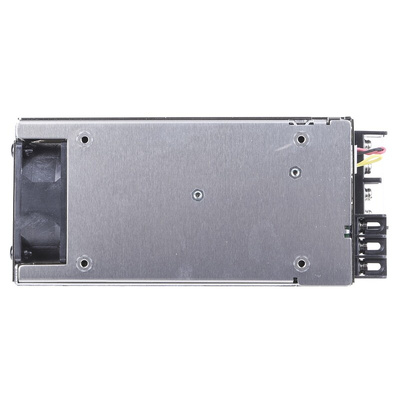

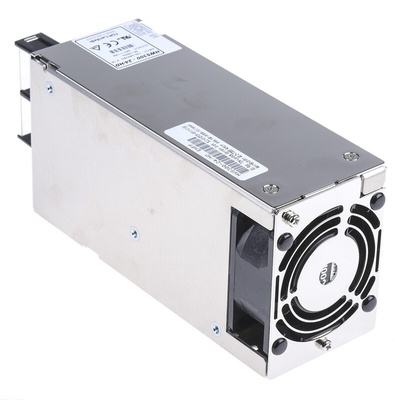

TDK-Lambda Switching Power Supply, HWS300-24/HD, 24V dc, 14A, 336W, 1 Output, 120 → 330 V dc, 85 → 265 V, Источник питания

TDK-Lambda Switch Mode Power Supply

The TDK-Lambda HWS series 336W single output AC to DC embedded switch mode power supply has an output current rating of 14A at 24VDC. It has a universal input supply voltage rating from 85VAC to 265VAC and 120VDC to 330VDC.
Note:
Peak load current for 10 seconds (maximum) ON time, 35% duty cycle. The de-rate output above 50°C. Depth excludes terminal block/ connectors.

Features and Benefits

Adjustable output voltage (±20%)
Built-in fan on 300W to1500W types
Conformal coating applied to both sides of the PCB, allowing use adverse environmental conditions
Conforms to SEMI F47 requirements for semiconductor manufacturing equipment
Designed for high reliability
Easy installation
Exceptionally compact, requires typically 50% less space than previous generation products
LED indicator for power ON
Long product lifecycle
Overvoltage and overcurrent protection
Screw terminals

Certifications

CE certified
CSA 60950-1
CSA approved
EN 50178
EN 55022-B
EN 60950-1
EN 61000-3-2 (Power factor correction)
FCC class B
UL 60950-1
UL508

Approvals

UL recognised, CSA

HWS-A_300W-1500W_EN_datasheet
