1051, Time Electronics Resistance Decade Box, Resistance Resolution 0.01Ω, Absolute Maximum Resistance Measurement 1MΩ, RS, Декадный магазин

Calibration/ Substitution, 8 Decade-Thumb Wheel Resistance Boxes

For simulating resistance transducers and for laboratory, industrial and educational use. Required resistance is set by clearly marked thumbwheel switches, colour coded to aid identification.

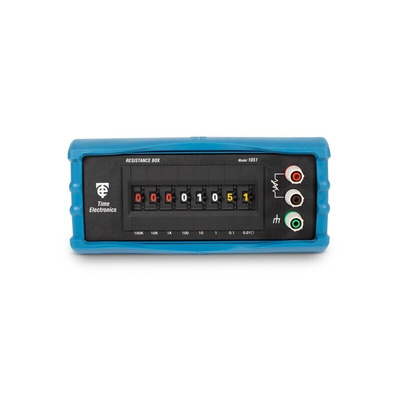

Time Electronic Resistance Decade Box

The Time Electronic resistance decade box has resistance measurement ranges between 0.01ohm and 1Mohm. It is housed in a robust metal case with a removable protective rubber cover. It is designed to meet the requirements of both, industry and education. Excellent accuracy (mid-scale 0.1%) is achieved by using high stability metal film resistors. The 8-digit thumbwheel switch enables simple and precise setting with a clear indication of the resistance value.

Features and Benefits

Eight decades are 0.01ohm. 0.1ohm, 1ohm, 10ohm, 100ohm, 1kohm, 10kohm and 100kohm
Voltage rating is 250VAC/DC rms
Power rating is 1W
Resistance resolution is 0.01ohm
Clear visual indication with colour coded digits
High accuracy
High stability
Low temperature coefficient
Safety terminals
Compact and durable

Applications

Industrial use
Laboratory work
Educational

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

1051 Decade Resistance Box Technical Manual

1051 Low Ohm Resistance Box Data Sheet
