RS PRO Inductive Barrel-Style Proximity Sensor, M12 x 1, 3 mm Detection, PNP Output, 10 → 30 V dc, IP68, Индуктивный датчик приближения

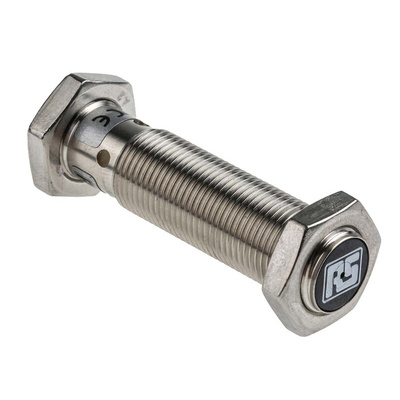

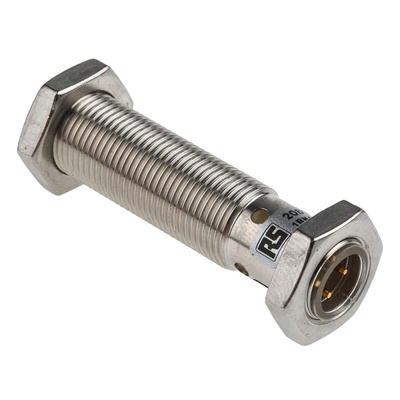

RS PRO Inductive Proximity Sensor, Barrel, PNP Output, 3 mm Detection, M12 x 1, IP68, M12 4 Pin Terminal

If you need to detect the presence of metal objects without any physical contact, try this RS PRO inductive proximity sensor. It's used in situations where an object needs to be detected within a defined range, such as sorting items on a production line.


The sensor's stainless steel body means it's tough enough to withstand heavy-duty use in demanding industrial environments. Its high thermal resistance makes the component suitable for use in hot operating conditions. It has an IP68 (Ingress Protection) rating, so it's dust-tight and water-resistant.


For maximum versatility, this sensor can detect both ferrous and non-ferrous metals. Use it in food processing applications or when working with delicate objects that can be damaged when touched.

Features and Benefits

• Barrel body


• Detection range of 3 mm


• Stainless steel housing


• Ingress Protection (IP) rating of IP68


• Length of 52 mm


• Maximum voltage of 30 V DC


• Operating temperature range of -30ºC to +85ºC


• Maximum switching frequency of 3 kHz


• Flush mounting type


• PNP (positive, negative, positive) output type


• Reverse polarity protection


• Inductive sensor technology


• Short circuit overload protection


• Supply voltage of 10 to 30 V DC


• Switching current of 200 mA (milliamperes)


• M12 four-pin terminal type


• Thread size of M12 x 1
