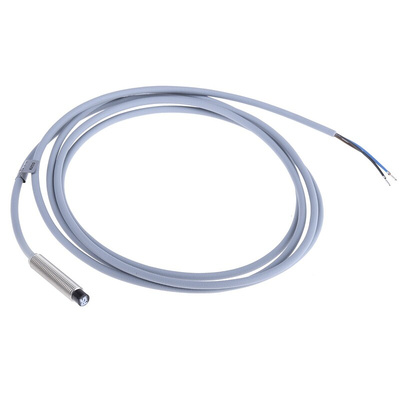

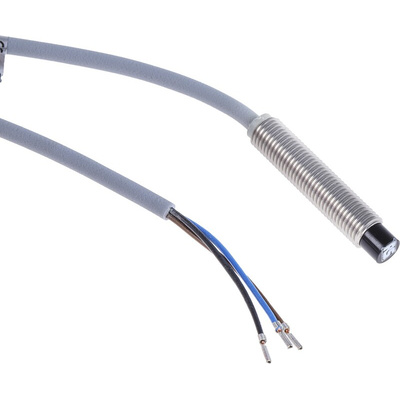

RS PRO Inductive Barrel-Style Proximity Sensor, M8 x 1, 4 mm Detection, PNP Output, 10 → 30 V dc, IP68, Индуктивный датчик приближения

RS PRO Inductive Proximity Sensor, Barrel, PNP Output, 4 mm Detection, M8 x 1, IP68, Cable Terminal

Use this inductive proximity sensor from RS PRO if you need to detect the presence of delicate metal objects without any physical contact. It can detect both ferrous and non-ferrous metals for increased versatility.


Thanks to the body's stainless steel construction, it's durable and resistant to corrosion for use in harsh industrial environments. You can use it in hot operating conditions as it has a high thermal resistance. It's also dust-tight and water-resistant thanks to its IP68 (Ingress Protection) rating.


This type of sensor is frequently used when you need to detect an object within a specific range, such as in process control or agricultural applications. It's suitable for use in food processing tasks.

Features and Benefits

• Barrel body


• Detection range of 4 mm


• Stainless steel housing


• Ingress Protection (IP) rating of IP68


• Length of 40 mm


• Maximum voltage of 30 V DC


• Operating temperature range of -30ºC to +85ºC


• Maximum switching frequency of 2 kHz


• Non-flush mounting type


• PNP (positive, negative, positive) output type


• Reverse polarity protection


• Inductive sensor technology


• Short circuit overload protection


• Supply voltage of 10 to 30 V DC


• Switching current of 150 mA (milliamperes)


• Cable terminal type


• Thread size of M8 x 1

Applications
