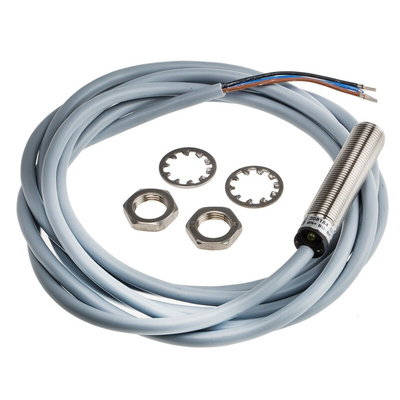

RS PRO Inductive Barrel-Style Proximity Sensor, M12 x 1, 3 mm Detection, PNP Output, 10 → 30 V dc, IP68, Индуктивный датчик приближения

RS PRO Inductive Proximity Sensor, Barrel, PNP Output, 3 mm Detection, M12 x 1, IP68, Cable Terminal

If you need to detect the presence of both ferrous and non-ferrous metal objects without making any physical contact, this RS PRO inductive proximity sensor is a reliable solution. It's frequently used whenever an object needs detecting within a defined range, such as sorting applications on a conveyor belt.


This sensor can withstand use in hot environments thanks to its high thermal resistance. It's also resistant to corrosion and wear as it's made of a durable stainless steel material. Its IP68 (Ingress Protection) rating means it's sealed against dust and resistant to water. You can use this sensor for food processing applications, as well as any application involving delicate objects that could be destroyed by physical touch.

Features and Benefits

• Barrel body


• Detection range of 3 mm


• Stainless steel housing


• Ingress Protection (IP) rating of IP68


• Length of 52 mm


• Maximum voltage of 30 V DC


• Operating temperature range of -30ºC to +85ºC


• Maximum switching frequency of 3 kHz


• Flush mounting type


• PNP (positive, negative, positive) output type


• Reverse polarity protection


• Inductive sensor technology


• Short circuit overload protection


• Supply voltage of 10 to 30 V DC


• Switching current of 200 mA (milliamperes)


• Cable terminal type


• Thread size of M12 x 1
