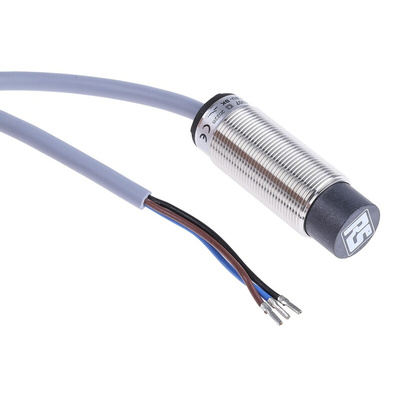

RS PRO Inductive Barrel-Style Proximity Sensor, M18 x 1, 12 mm Detection, PNP Output, 10 → 30 V dc, IP68, Индуктивный датчик приближения

RS PRO Inductive Proximity Sensor, Barrel, PNP Output, 12 mm Detection, M18 x 1, IP68, Cable Terminal

This RS PRO inductive proximity sensor is ideal for detecting metal objects without using any physical contact. It can detect both ferrous and non-ferrous metals, making it a versatile choice.


This sensor is designed to stand up to demanding environments as it has a tough, corrosion-resistant stainless steel body. Its IP68 (Ingress Protection) rating makes it completely dust-tight and water-resistant. It also offers good thermal resistance for use in hot environments.


This component is often used in agricultural or process control applications. It's a good choice for food processing or other tasks involving delicate objects that could be damaged if touched.

Features and Benefits

• Barrel body


• Detection range of 12 mm


• Stainless steel housing


• Ingress Protection (IP) rating of IP68


• Length of 50 mm


• Maximum voltage of 30 V DC


• Operating temperature range of -30ºC to +85ºC


• Maximum switching frequency of 2 kHz


• Non-flush mounting type


• PNP (positive, negative, positive) output type


• Reverse polarity protection


• Inductive sensor technology


• Partial shielding


• Short circuit overload protection


• Supply voltage of 10 to 30 V DC


• Switching current of 200 mA (milliamperes)

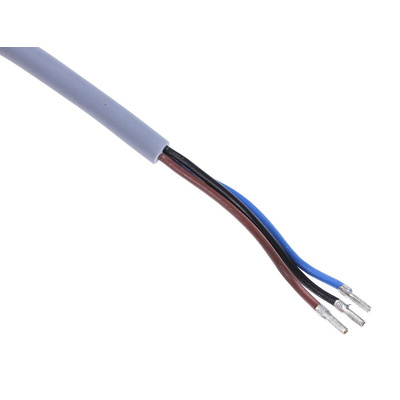

• Cable terminal type


• Thread size of M18 x 1

Applications
