RS PRO Inductive Barrel-Style Proximity Sensor, M18 x 1, 5 mm Detection, PNP Output, 10 → 30 V dc, IP68, Индуктивный датчик приближения

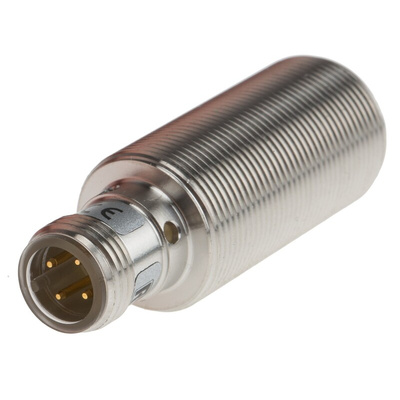

RS PRO Inductive Proximity Sensor, Barrel, PNP Output, 5 mm Detection, M18 x 1, IP68, M12 4 Pin Terminal

Need to detect the presence of metal objects without making any physical contact with them? Choose this RS PRO inductive proximity sensor. This type of sensor is used in situations where an object needs detecting within a defined range, such as sorting manufactured items on a production line.


The sensor's stainless steel body ensures it's tough and corrosion-resistant, so it's suitable for use in demanding environments. Its high thermal resistance allows it to withstand use in hot operating conditions. It's also protected against dust and is water-resistant as it has an IP68 (Ingress Protection) rating. You'll find this product useful for food processing applications.

Features and Benefits

• Barrel body


• Detection range of 5 mm


• Stainless steel housing


• Ingress Protection (IP) rating of IP68


• Length of 52 mm


• Maximum voltage of 30 V DC


• Operating temperature range of -30ºC to +85ºC


• Maximum switching frequency of 2.5 kHz


• Flush mounting type


• PNP (positive, negative, positive) output type


• Reverse polarity protection


• Inductive sensor technology


• Short circuit overload protection


• Supply voltage of 10 to 30 V DC


• Switching current of 200 mA (milliamperes)


• M12 four-pin terminal type


• Thread size of M18 x 1
