RS PRO Inductive Barrel-Style Proximity Sensor, M18 x 1, 12 mm Detection, PNP Output, 10 → 30 V dc, IP68, Индуктивный датчик приближения

0208235
Производитель: RS PRO
Цена за шт.
31200.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

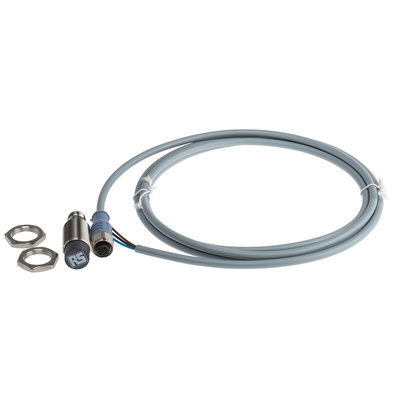

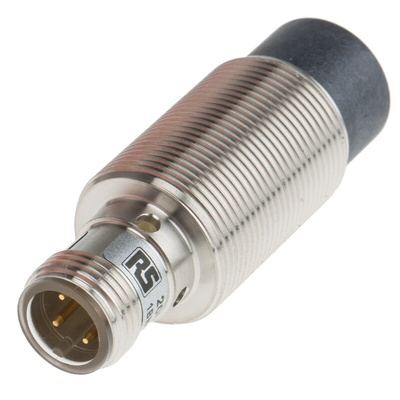

RS PRO Inductive Proximity Sensor, Barrel, PNP Output, 12 mm Detection, M18 x 1, IP68, M12 4 Pin Terminal

Use this RS PRO inductive proximity sensor to detect delicate metal objects that could be damaged if touched. It's used to detect objects without physical contact and within a defined range, such as when sorting items on a factory production line.


The sensor's stainless steel body means it's tough and corrosion-resistant, so it can withstand installation in demanding industrial environments. Its IP68 (Ingress Protection) rating makes it completely dust-tight and water-resistant. It also offers high thermal resistance for use in hot settings. This versatile sensor can detect both ferrous and non-ferrous metals and is suitable for use in food processing applications.

Features and Benefits

  • Barrel body

  • Detection range of 12 mm

  • Stainless steel housing

  • Ingress Protection (IP) rating of IP68

  • Length of 52 mm

  • Maximum voltage of 30 V DC

  • Operating temperature range of -30ºC to +85ºC

  • Maximum switching frequency of 2 kHz

  • Non-flush mounting type

  • PNP (positive, negative, positive) output type

  • Reverse polarity protection

  • Inductive sensor technology

  • Partial shielding

  • Short circuit overload protection

  • Supply voltage of 10 to 30 V DC

  • Switching current of 200 mA (milliamperes)

  • M12 four-pin terminal type

  • Thread size of M18 x 1

Applications

These Proximity Sensors are commonly used for the following magnetic output applications:

  • Forklift Truck

  • Food industry

  • Beverage industry

  • Robotics

  • Packing and materials handling

  • For monitoring components positions within hydraulic machines

Frequently asked questions

How Inductive Sensors work?

Inductive sensors contain a coil and an oscillator that create an electromagnetic field close to the sensing surface. When metal enters this field, a change occurs in the oscillating amplitude. This, in turn, changes the sensor output, showing the user and/or corresponding equipment that metal has been sensed.

The operating distance varies between sensors and can be affected by the target, the shape of what is being detected and what environment or material you are using the sensor in. These are all things to bear in mind when choosing the right sensor for your application.

Why RS PRO?

RS PRO is our family brand to go-to and brings you a wide range for high-quality and high-value products to support your project. Trusted by engineers all over the world, every part of every RS PRO product is always rigorously tested against demanding industry standards. We are only giving the RS PRO seal of approval if we are confident of their exceptional quality, which means you can be convinced too.

Техническая спецификация
pdfRS Pro Datasheet
pdfRS PRO Factory Automation Sensors Guide
Вид корпуса:
Бочковидный
Диапазон обнаружения:
12 мм
Длина:
52мм
Защита от короткого перегрузочного замыкания:
Да
Защита от обратной полярности:
Да
Коммутируемый ток:
200 мА
Максимальная частота переключений:
2кГц
Максимальное напряжение постоянного тока:
30В
Материал корпуса:
Нержавеющая сталь
Напряжение питания:
10 → 30 В пост. тока
Рабочая температура - максимальная:
+85°C
Рабочая температура - минимальная:
-30°C
Размер резьбы:
M18 x 1
Степень защиты IP:
IP68
Технология датчика:
Индуктивный
Тип выхода:
PNP
Тип клеммы:
4-контактный M12 Разъем
Тип монтажа:
Non-Flush
Экранирование:
Частичное
