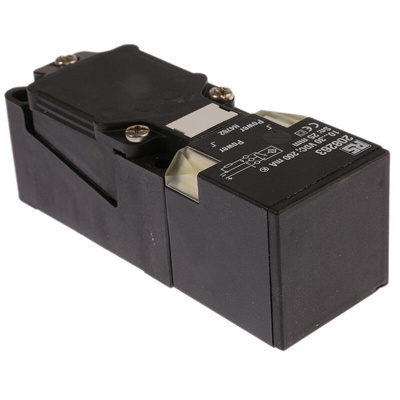

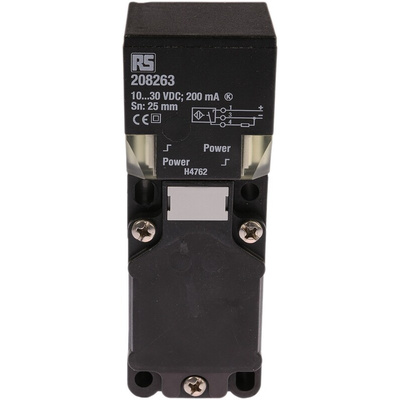

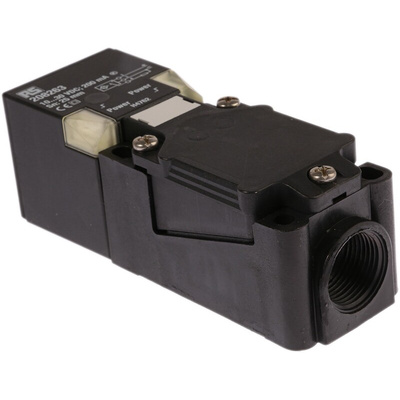

RS PRO Inductive Block-Style Proximity Sensor, 25 mm Detection, PNP Output, 10 → 30 V dc, IP68, Индуктивный датчик приближения

RS PRO Inductive Proximity Sensor, Block, PNP Output, 25 mm Detection Range, M20 Gland Terminal

Use this RS PRO inductive proximity sensor to detect metal objects up to 25 mm away. You can use it to monitor the position of components in equipment such as fork trucks and other hydraulic machines.
The sensor has a high switching frequency for fast response times to improve the safety and efficiency of your equipment. As it's able to sense both ferrous and non-ferrous metals, you can use it with a wide range of different components. An adjustable head allows you to set a range of detection distances. A proximity sensor like this is suitable for sensitive robotic applications. Its IP68 (Ingress Protection) rating means the components are dust-tight and water-resistant, so it's a good choice for harsh or polluted industrial environments.

Features and Benefits

• Block body
• Detection range of 25 mm
• Plastic housing
• Ingress Protection (IP) rating of IP68
• Length of 114 mm
• Width of 40 mm
• Depth of 40 mm
• Maximum voltage of 30 V DC
• Operating temperature range of -30°C to +85°C
• Maximum switching frequency of 250 Hz
• Non-flush mounting type
• PNP (positive, negative, positive) output type
• Reverse polarity protection
• Inductive sensor technology
• Partial shielding
• Short circuit overload protection
• Supply voltage of 10 to 30 V DC
• Switching current of 200 mA (milliamperes)
• M20 gland terminal type
