RS PRO Inductive Block-Style Proximity Sensor, 40 mm Detection, PNP Output, 10 → 30 V dc, IP68, Индуктивный датчик приближения

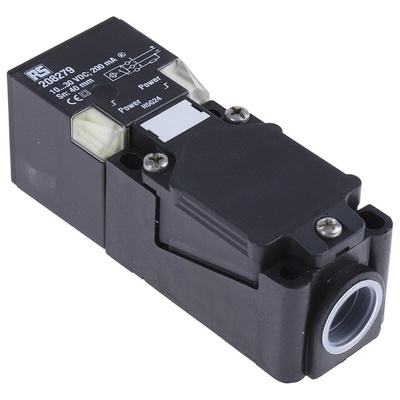

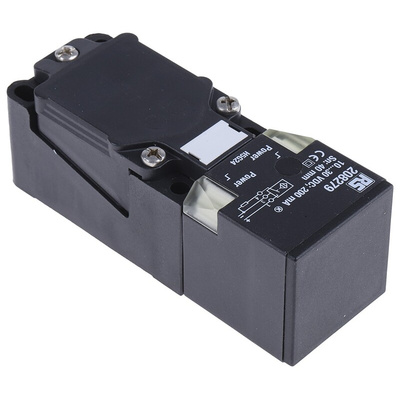

RS PRO Inductive Proximity Sensor, Block, PNP Output, 40 mm Detection, IP68, M20 Gland Terminal

To detect metal objects up to 40 mm away, choose this inductive proximity sensor from RS PRO. It's ideal for monitoring the position of components in your equipment, including fork trucks and other hydraulic machines.


This sensor is guaranteed to stand up to demanding environments, as its Ingress Protection (IP) rating of IP68 means it's water-resistant and dust-tight. For improved safety and efficiency, it has a high switching frequency for fast response times. It also has an adjustable head, so you can easily set a range of detection distances.


The sensor is suitable for a variety of components as it can detect both ferrous and non-ferrous metals. You can use it for sensitive robotics applications.

Features and Benefits

• Block body


• Detection range of 40 mm


• Plastic housing


• Ingress Protection (IP) rating of IP68


• Length of 114 mm


• Width of 40 mm


• Depth of 40 mm


• Maximum voltage of 30 V DC


• Operating temperature range of -30ºC to +85ºC


• Maximum switching frequency of 250 Hz


• Non-flush mounting type


• PNP (positive, negative, positive) output type


• Reverse polarity protection


• Inductive sensor technology


• Short circuit overload protection


• Supply voltage of 10 to 30 V DC


• Switching current of 200 mA (milliamperes)


• M20 gland terminal type

Applications
