RS PRO Inductive Barrel-Style Proximity Sensor, M30 x 1.5, 20 mm Detection, PNP Output, 10 → 30 V dc, IP68, Индуктивный датчик приближения

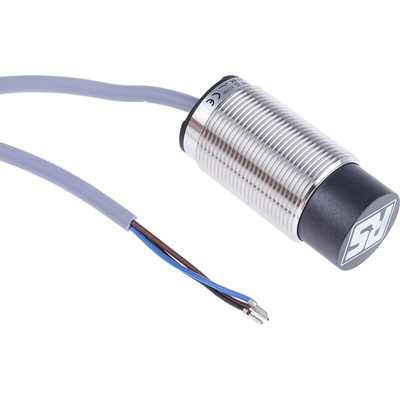

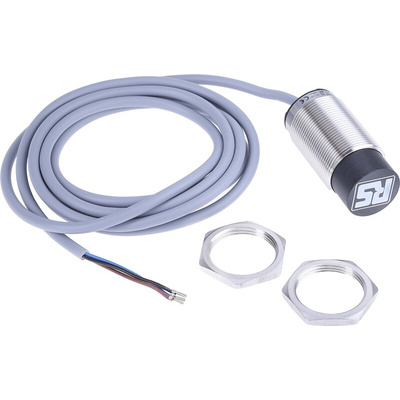

RS PRO Inductive Proximity Sensor, Barrel, PNP Output, 20 mm Detection, M30 x 1.5, IP68, Cable Terminal

If you need to detect the presence of metal objects without making any physical contact, this RS PRO inductive proximity sensor is an ideal solution. It's useful when working with delicate or unstable objects that are susceptible to damage when touched.


This sensor is guaranteed to stand up to demanding environments as it has a tough, corrosion-resistant stainless steel body. It also has high thermal resistance to withstand hot conditions.


Thanks to its IP68 (Ingress Protection) rating, the unit is dust-tight and water-resistant. It's used for detecting objects within a defined range in food processing or process control applications.

Features and Benefits

• Barrel body


• Detection range of 20 mm


• Stainless steel housing


• Ingress Protection (IP) rating of IP68


• Length of 62 mm


• Maximum voltage of 30 V DC


• Operating temperature range of -30ºC to +85ºC


• Maximum switching frequency of 1.5 kHz


• Non-flush mounting type


• PNP (positive, negative, positive) output type


• Reverse polarity protection


• Inductive sensor technology


• Partial shielding


• Short circuit overload protection


• Supply voltage of 10 to 30 V DC


• Switching current of 200 mA (milliamperes)

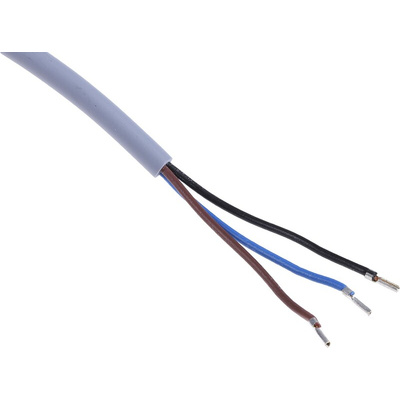

• Cable terminal type


• Thread size of M30 x 1.5
