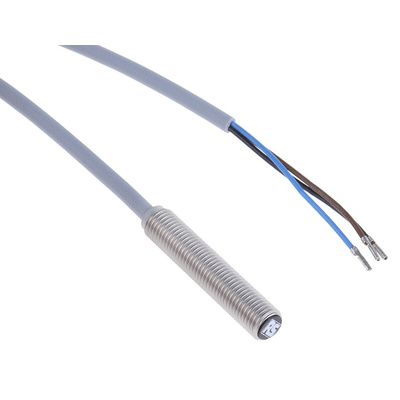

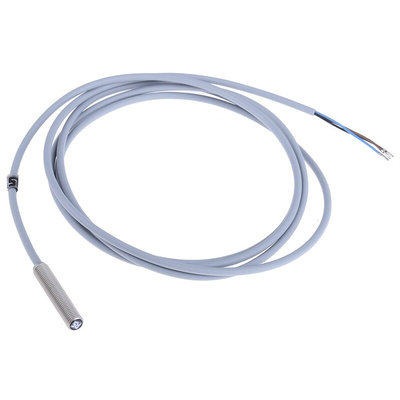

RS PRO Inductive Barrel-Style Proximity Sensor, M8 x 1, 1.5 mm Detection, PNP Output, 10 → 30 V dc, IP68, Индуктивный датчик приближения

RS PRO Inductive Proximity Sensor, Barrel, PNP Output, 1.5 mm Detection, M8 x 1, IP68, Cable Terminal

This RS PRO inductive proximity sensor is ideal for detecting metal objects without using any physical contact. It's often used in agricultural or process control applications, such as sorting produce or packages on a factory conveyor belt.


This sensor has a stainless steel body that's durable and resistant to corrosion, making it suitable for use in demanding industrial conditions. Its IP68 (Ingress Protection) rating makes it completely dust-tight and water-resistant, while high thermal resistance offers protection in hot operating environments.


You can use this sensor in food processing applications, or any application involving delicate objects that could be damaged by touch. It can detect both ferrous and non-ferrous metals, making it a versatile choice.

Features and Benefits

• Barrel body


• Detection range of 1.5 mm


• Stainless steel housing


• Ingress Protection (IP) rating of IP68


• Length of 40 mm


• Maximum voltage of 30 V DC


• Operating temperature range of -30ºC to +85ºC


• Maximum switching frequency of 2 kHz


• Flush mounting type


• PNP (positive, negative, positive) output type


• Reverse polarity protection


• Inductive sensor technology


• Short circuit overload protection


• Supply voltage of 10 to 30 V DC


• Switching current of 150 mA (milliamperes)

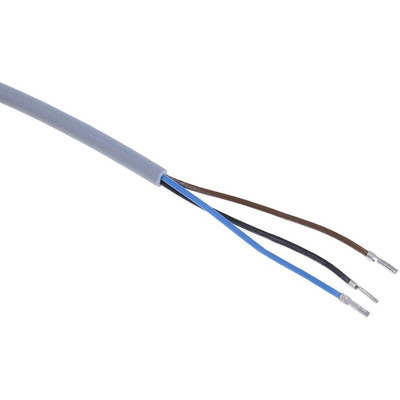

• Cable terminal type


• Thread size of M8 x 1

Applications
