SO/R/SR/10C, Eaton Series Red Flashing Beacon, 9 → 60 V dc, Surface Mount, Xenon Bulb, IP21C, IP65, Маячок

Fulleon Xenon Beacons - Solex Xenon

The Solex Xenon beacon range from Fulleon offer alert and alarm functionality alongside the wide operating voltages, automatic synchronisation and increased efficiency that enable the beacon to perform as a universal solution for all types of alarm and safety monitoring systems. This beacon provides a convenient, versatile and rugged solution for industrial and commercial installations. Powered by xenon beacon technology, the Solex is a cost effective solution that can compliement audible alarms in high noise environments.

Features & Benefits

• The perfect solution for alarm and monitoring systems
• Featuring a base lock and tamper switch makes the beacons ideal for applications within the security sector, the base lock allows the beacon to be secured the base
• Wide operating voltage for maximum flexibility
• Automatic synchronisation
• Suitable for a multitude of applications, predominantly used for fire warning or general signalling
• Compact in size with deep base or shallow base options available in red or white
• 5 lens colour options (red, amber, blue, green or white)

Did you know?

Did you know that the Solex range of xenon beacons are a new replacement for its predecessors BE and Inergi (IB) beacons? The new Solex range features increased functionality whilst reducing a vast range of products which in turn provides a simpler range of products.

Warning

This product exceeds the requirements of En54-3 but is not designed to meet EN54-23. Where the Construction Product Directive or Regulation (CPD/CPR) is a country requirement, it cannot be used, legally, for the purpose of alerting room occupants to a Fire Alarm condition. For Countries where CPD/CPR does not apply, this note should be disregarded.

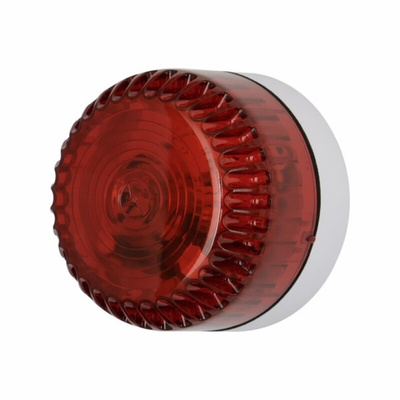

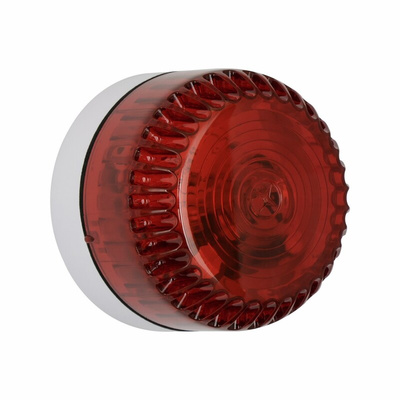

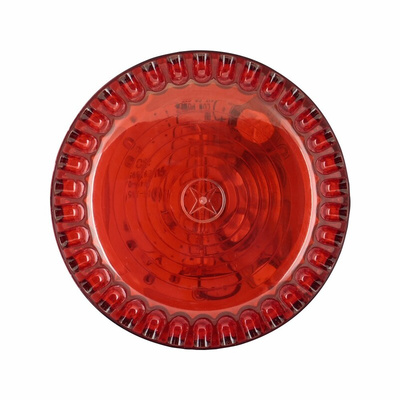

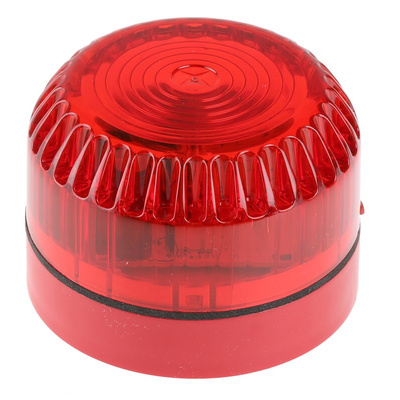

Eaton Red Flashing Xenon Beacon, 9 to 60V DC, Surface Mount - Solex Series - SO/R/SR/10C

Looking for a way to enhance workplace safety? This beacon from Eaton is a flashing light that alerts staff to urgent situations. Its xenon bulb is housed in a red lens and flashes at a rate of 60FPM (flashes per minute). The wide viewing angle of the flash means it's easy to see in large open areas, while the red colour typically indicates a change in a machine process that needs an immediate response. This beacon is suitable for use in a wide range of settings from power plants to factories.

• Xenon bulb is long-lasting and energy efficient
• PC (polycarbonate) lens material is UV stable and won't fade
• Tamper-proof switch makes it suitable for safety applications

Can I use this xenon beacon in demanding environments?

Yes – this beacon has an operating temperature range of -25°C to +70°C so it can withstand harsh industrial environments.

Is this xenon beacon protected against moisture and dust?

The beacon has an IP65 (ingress protection) rating, meaning it can withstand exposure to low-level water jets and dust.

Note

Eaton formerly known as Fulleon

Approvals

VDS approved
