SO/R/SR/3C, Eaton Series Red Flashing Beacon, 9 → 60 V dc, Surface Mount, Xenon Bulb, Маячок

Fulleon Xenon Beacons - Solex Xenon

The Solex Xenon beacon range from Fulleon offer alert and alarm functionality alongside the wide operating voltages, automatic synchronisation and increased efficiency that enable the beacon to perform as a universal solution for all types of alarm and safety monitoring systems. This beacon provides a convenient, versatile and rugged solution for industrial and commercial installations. Powered by xenon beacon technology, the Solex is a cost effective solution that can compliement audible alarms in high noise environments.

Features & Benefits

• The perfect solution for alarm and monitoring systems
• Featuring a base lock and tamper switch makes the beacons ideal for applications within the security sector, the base lock allows the beacon to be secured the base
• Wide operating voltage for maximum flexibility
• Automatic synchronisation
• Suitable for a multitude of applications, predominantly used for fire warning or general signalling
• Compact in size with deep base or shallow base options available in red or white
• 5 lens colour options (red, amber, blue, green or white)

Did you know?

Did you know that the Solex range of xenon beacons are a new replacement for its predecessors BE and Inergi (IB) beacons? The new Solex range features increased functionality whilst reducing a vast range of products which in turn provides a simpler range of products.

Warning

This product exceeds the requirements of En54-3 but is not designed to meet EN54-23. Where the Construction Product Directive or Regulation (CPD/CPR) is a country requirement, it cannot be used, legally, for the purpose of alerting room occupants to a Fire Alarm condition. For Countries where CPD/CPR does not apply, this note should be disregarded.

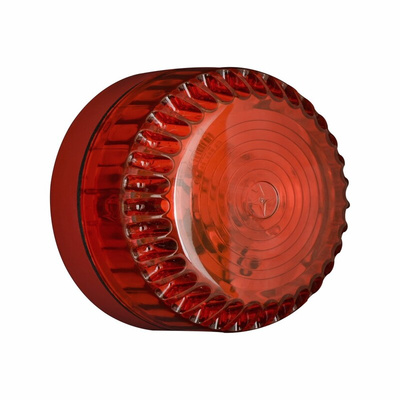

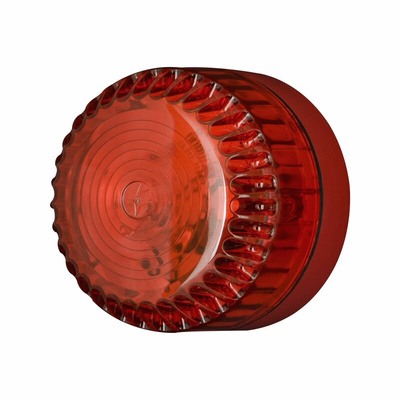

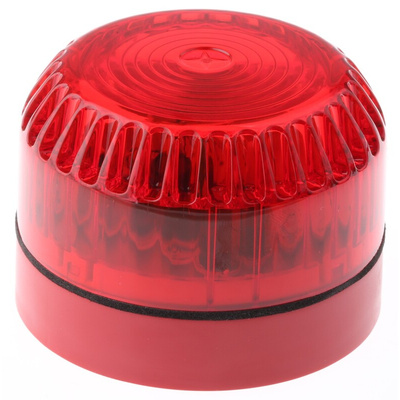

Eaton Red Flashing Xenon Beacon, 9 to 60V DC, Surface Mount - Solex Series - SO/R/SR/3C

Looking for a way to promote safety in your workspaces? This Eaton red xenon beacon is a flashing, surface-mount illuminator that attracts the attention of personnel. You can use it as part of an audio alarm system or on its own to warn people of work in progress, approaching danger or moving vehicles in construction sites and warehouses. It's a reliable, highly visible signal that's ideal for loud environments. Install this beacon as a safety warning system in commercial and industrial settings.

• Base lock and non-tamper switch for a secure attachment and safety
• Operating voltage of 9 to 60V DC (direct current) for versatile use
• Automatic synchronisation means you can couple this beacon with an audio alarm

How much current does this beacon use?

This beacon uses either 3mA, 5mA or 15mA (milliamperes) depending on your application and the brightness setting of the lamp.

Can I use this beacon in heavy-duty environments like factories and warehouses?

Yes. The base of this beacon has an IP65 (ingress protection) rating, which means it's shielded against dust and contaminants that can damage internal components.

Note

Eaton formerly known as Fulleon

Approvals

VDS approved

Product Conformance Summary

Fulleon Solex Beacon - Instruction Sheet

Statement for non EN54-23
