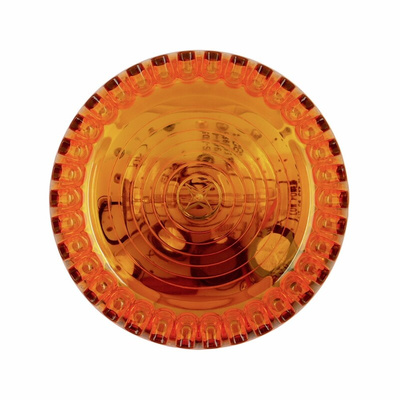

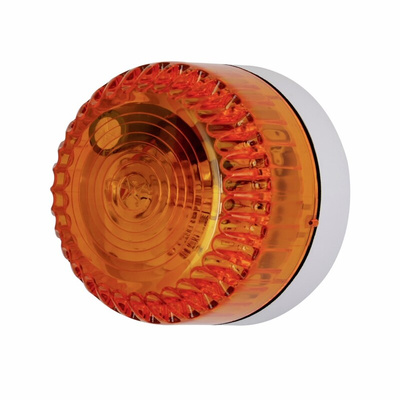

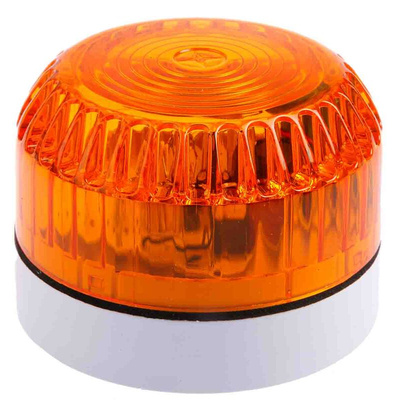

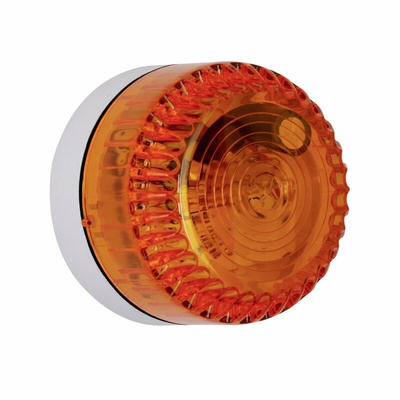

SO/A/SW/10C, Fulleon Solex Amber Xenon Beacon, 9 → 60 V dc, Flashing, Surface Mount, Маячок

Fulleon Exenon Beacon - Solex Range

Alert and alarm functionality alongside the wide operating voltages, automatic synchronisation and increased efficiency enable the Solex range to perform as a universal solution for all types of alarm and monitoring systems. This range provides a convenient, versatile and rugged solutions for industrial and commercial installations. More often than not, beacons are being used to replace audible alarms, this is because a combined sounder beacon allows for both audible and visuals through one single installation point. Installing just one device enables users to free up some time and cost.

Features & Benefits

• The perfect solution for alarm and monitoring systems
• Featuring a base lock and tamper switch makes the xenon beacons ideal for applications within the security sector, the base lock allows the beacon to be secured the base
• Constant performance over voltage range, wide operating voltage for maximum flexibility
• Automatic synchronisation
• Suitable for a multitude of applications, predominantly used for fire warning or general signalling
• Compact in size
• Manage the current to suit your application

Did you know?

Did you know that the Solex range of xenon beacons are a new replacement for its predecessors BE and Inergi (IB) beacons? The new Solex range features increased functionality whilst reducing a vast range of products which in turn provides a simpler range of products.

Warning

This product exceeds the requirements of En54-3 but is not designed to meet EN54-23. Where the Construction Product Directive or Regulation (CPD/CPR) is a country requirement, it cannot be used, legally, for the purpose of alerting room occupants to a Fire Alarm condition. For Countries where CPD/CPR does not apply, this note should be disregarded.

SO/A/SW/10C Flashing Beacon

• Three light output options
• Five lens colour options
• 9-60 V
• User-selectable current - 3 / 5 / 15mA
• User selectable light output - 0.5 / 1 / 3cd
• Single and double flash rates at 1Hz
• The optimum operating temperature of - 10ºC to + 55ºC
• Amber in colour
• IP protection

Approvals

VDS approved

Product Conformance Summary

Statement for non EN54-23

Machine Guarding and Safety Range Overview

SO/A/SW/10C Datasheet
