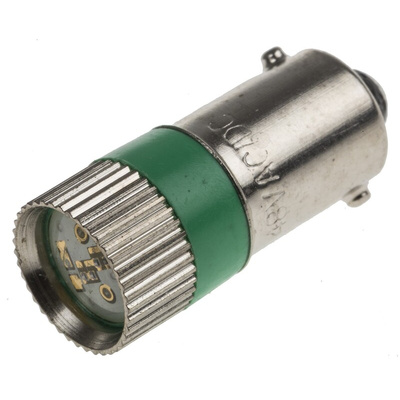

RS PRO Green LED Indicator Lamp, 48V ac/dc, BA9s Base, 10mm Diameter, 70/70mcd, Светодиодная лампа

BA9s, ac/dc, Multi-Chip LEDs

These highly durable RS Pro LED reflector bulbs are perfect for your lighting application. With green, red and yellow all available, there is a great choice depending on the light output colour you require. All models are highly reliable and excellent quality.

Features & Benefits

Short body 8-chip LED with metal reflector
12, 24, 28, 48, 60 V ac/dc types
Full-wave bridge rectifier
Bi-polar dc connections
Body colour coded

Multi-Chip LEDs

Multi-chip LEDs are semi-conducting alternatives to incandescent filament lamps. Construction consists of standard filament lamp bases incorporating a current limiting resistor and a cluster of LED chips bonded onto a substrate. Multi-chip LEDs have many advantages over standard filament lamps.

Very high immunity to shock and vibration
Current consumption is between 50 and 65% lower
Lower operating temperatures

Note

The operating voltage must not be exceeded by more than 10% as this will result in reduced life expectancy.

RS Pro Datasheet
