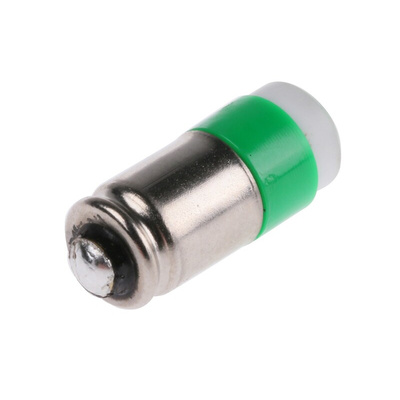

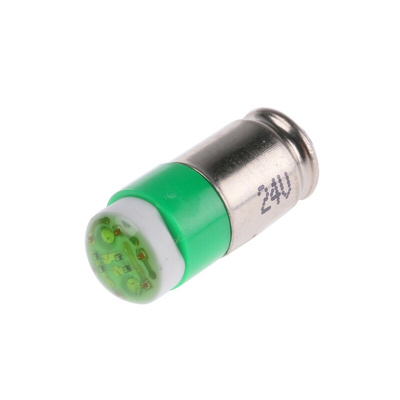

RS PRO Green LED Indicator Lamp, 24V dc, Midget Groove Base, 6mm Diameter, 35mcd, Светодиодная лампа

RS PRO LED Reflector Bulb, Midget Groove, Green, Multichip, 6 mm Diameter, 24 V DC

Are you looking to replace a signal light on your control panel? Choose this green reflector bulb from RS PRO. It uses little power yet offers excellent brightness, and it has a long lifespan of up to 100,000 hours.


This bulb's LEDs (light-emitting diodes) don't require a warm-up period or produce heat when in use, so they keep this unit's power consumption low. The current-limiting resistor in the lamp protects the indicator from electrical current surges to reduce the risk of blowouts.


This component has been thoroughly tested to ensure quality. You'll find this bulb in a variety of industrial applications that require safety and warning lights. As it's made to fit a midget groove lamp base, it's simple to install and remove from indicator panels.

Features and Benefits

• Multichip type


• Current rating of 14 mA


• Voltage rating of 24 V DC


• Intensity of 35 mcd


• Peak wavelength of 565 nm


• Diameter of 6 mm


• Length of 15.25 mm


• Viewing angle of 180°


• RoHS (Restriction of Hazardous Substances) compliant

RS Pro Datasheet
