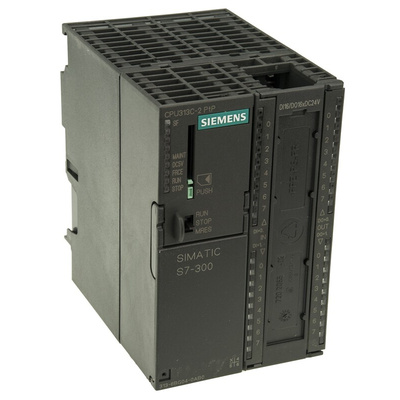

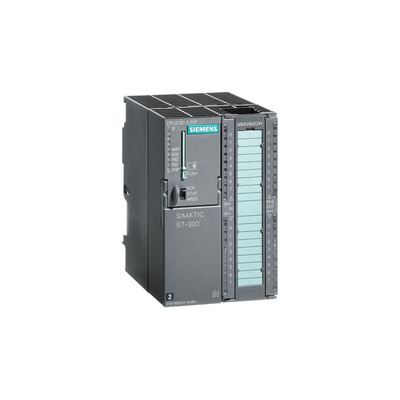

6ES7313-6BG04-0AB0, Siemens SIMATIC S7-300 Series PLC CPU for Use with SIMATIC S7-300 Series, Digital Output, 16 (Digital)-Input, Digital, ПЛК

Siemens PLC CPU, 24V DC Voltage Rating, 16 Digital Outputs - SIMATIC Series - 6ES7313-6BG04-0AB0

Get a handle on your automated process with this PLC CPU from Siemens. It carries signals between machines, automatically sending instructions from A to B, so you can enjoy efficient system control. Because it completes operations in just 0.07 to 0.72μs, it speeds through process management. There's space for up to 16 digital inputs and outputs, meaning this is a convenient option for running lots of modules at once. Thanks to integral support for full-duplex protocols, the device allows the movement of data in both directions for hassle-free communication. PLC CPUs like this are central to the management of medical equipment and automotive manufacturing systems.

Features & Benefits

• Slots into a rack for simple mounting

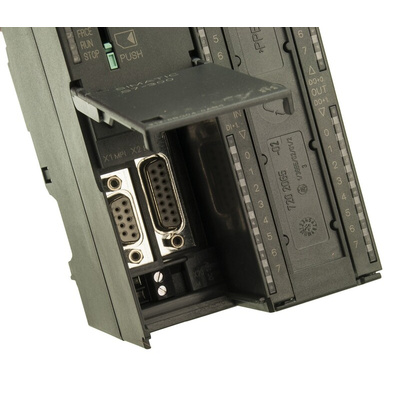

• Industry-standard RS422/485 connectivity for wide network compatibility
• Reverse-polarity protection on the inputs to cut the risk of damage from wiring errors
• Power loss of just 9W, minimising electrical consumption
• Works with shielded cables up to 1,000m in length to enable a flexible signalling layout

Can I add a delay to this unit's inputs?

Yes, this CPU can set input delays of 0.1, 0.3, 3 and 15ms, so it's no problem to line your moving components up for smooth processing.

S7-300 Compact Base Units & PSU's

The S7-300 compact provides more power and additional features with an easy and simple upgrade path from the S7-200 series, and includes many of the common features & instructions found on other models within the range.

Supply voltage for all CPU’s : 24Vdc
24Vdc input
MPI interface for communications with other controllers and operator panels
Enhanced communications possible using either PtP (RS485/422 serial interface) or DP (Profibus DP) interface
CPU’s have integral counters, frequency measurement capabilities and PWM outputs enabling direct control of valves & actuators
Simple motion control possible without additional components
