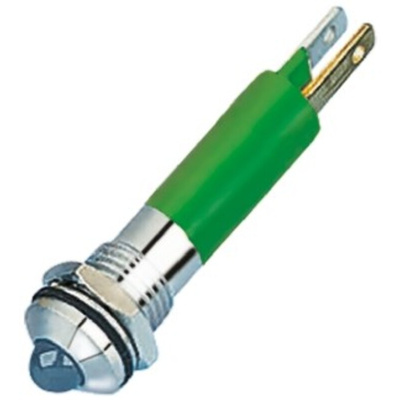

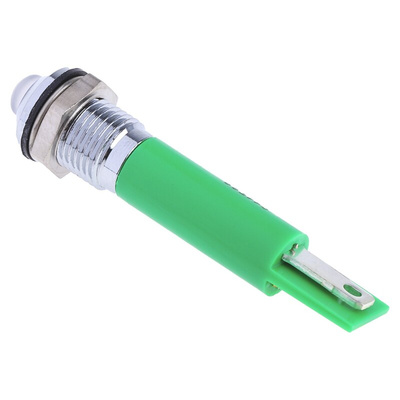

RS Pro Indicator, 8mm Panel Mount, Prominent, Green LED, Solder Tab Termination, 5 mm Lamp Size, 24 V ac/V dc, Индикатор

0211522
Номер производителя: Q8P1CXXHCG24AE Производитель: RS Pro
Цена за шт.
710.60 руб. *

Срок поставки: 3-5 недель

+

* Цена с НДС справочная. Возможно ее увеличение на стоимость доставки по России и сертификации.

RS Pro 8mm LED Indicators, IP67

Brought to you by RS Pro, these indicators provide an excellent solution for warning and attention signals within relevant applications. With three colours available, red, yellow and green. A type of traffic light system can be applied to circuit boards or electrical designs in regards to operation or safety. Each LED indicator is rated at IP67, this means it will have great protection and be fully operational within indoor and outdoor applications. All models are highly reliable and excellent quality.

Features and Benefits

• 5 mm high contrast coloured diffused epoxy lens
• Rated at IP67
• Solder tab terminals
• Gold terminals (Anode +ve)
• Various voltage ratings

How protected are these indicators?

Each model has excellent protection, highlighted by their IP67 rating. Although not fully waterproof, every indicator within this range is fully protected from dust and other small particles. It can also be fully immersed in water (up to 1 m depth) for a maximum of 30 minutes. It would depend on the application as to how this feature would be used, but the LED would continue to operate smoothly if the above guidelines are followed correctly.

Why choose LED?

LED has many benefits, the longevity and low power consumption are the main selling points of an LED. However, there are various other reasons to consider:

• Temperature - LED's give off a far cooler temperature than what an incandescent or neon light would.
• Direction - LED's will only emit light in a single direction, reducing the need for additional components, such as reflectors. Although this wouldn't apply if the LED indicator is being used as a circuit board signal.

Do these LED Indicators come with the correct fixings?

Absolutely, each indicator is fully supplied with a fixing nut, washer and a gasket.

Техническая спецификация
pdfEC Declaration of Conformity
pdfRS Pro Datasheet
IP рейтинг:
IP67
Длина:
44 мм
Интенсивность:
40 мкд
Номинал тока:
20 мА
Номинальное напряжение:
24 В перем./пост. тока
Размер лампы:
5 мм
Размер монтажного отверстия:
8мм
Рамка - цвет:
Хром
Тип:
Крепление на панель
Тип выводов:
Solder Tab
Тип лампы:
LED
Тип рамки:
Выступающий
Цвет выходного света:
Зеленый
