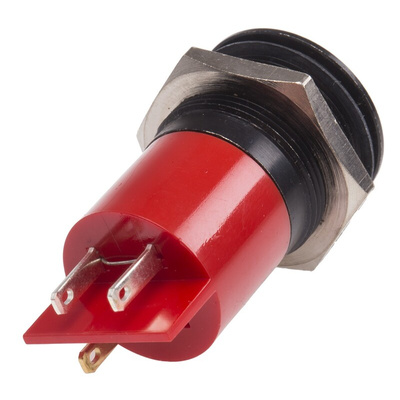

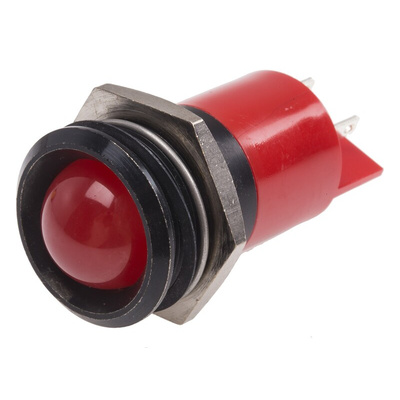

RS PRO Red Panel Mount Indicator, 22mm Mounting Hole Size, Solder Tab Termination, Индикатор

LED Panel Indicators, 22mm Mounting, 12 & 24V a.c./d.c. with Lamp Test Facility

Brought to you under the trusted RS Brand, this LED indicator has a recessed diffused epoxy style lens within a prominent chrome bezel. The indicator has a compact robust body that terminates with convenient solder tabs, for ease of installation, and is ingress protected to IP67, meaning it is suitable for use in harsh environments. Offering a low power consumption and long life, LED indicators are suitable for a variety of equipment needs.

Features and Benefits:

"• 16mm coloured diffused round or flat lens
• 25mm dia. chrome bezel
• High brightness
• Extra positive terminal to allow maximum circuit design flexibility
• Operating Temperature: -20°C to +60°C
• Life Expectancy: 100000 Hours
• Has 2 negative terminals to allow "daisy chaining"
• Supplied with fixing nut, washer and gasket
• 0.11in. (2.8x0.8mm) terminals connections"

Note

*It is recommended that the spare terminals are insulated if not used.

EC Declaration of Conformity

RS Pro Datasheet
