2908-05WB-MG, 3M 8 Way Right Angle Micro SD Memory Card Connector With Solder Termination, Разъем

Card connector micro-SD

1.85 mm low profile height
Small size of 14.0 mm ´ 14.2 mm footprint
Smooth push–push eject mechanism
Card is retained when mated
Card polarization
Will accept a card thickness of 0.8 mm
Mechanism prevents card from flying out upon ejection
Card detection indicator
Metal–shielded cover
microSD™ specification compliant
RoHS* compliant

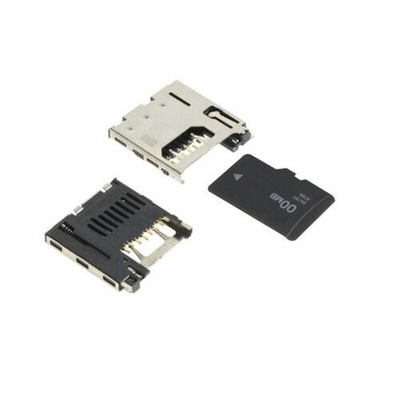

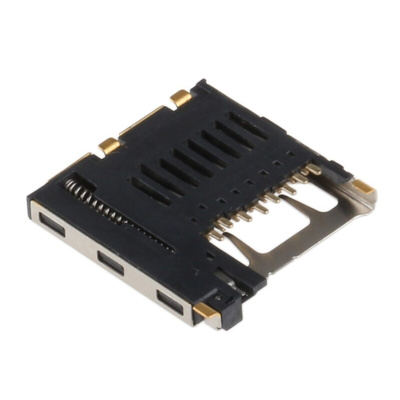

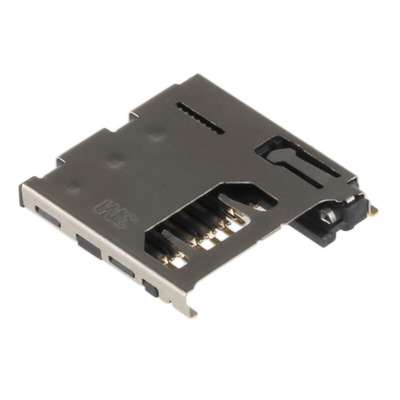

3M Memory Card Connector, Male, Surface Mount - 2908-05WB-MG

Connect MicroSD cards to your PBC with this memory card connector from 3M. As it accepts cards up to 0.8mm thick, it's a versatile option. The smooth push-push eject mechanism makes it easy to swap cards quickly. The mechanism also prevents cards from flying out when ejected, meaning they won't get lost or damaged. Compact dimensions of 14 (L) x 1.85 (W) x 15.2mm (D) save space in your system.

• Gold over nickel-plated copper alloy contacts provide high conductivity for faithful data transfer
• Solder terminations help you make strong and durable connections
• Operating temperature range of -25°C to +85°C makes it suitable for use in harsh environments

Applications

• Digital photography
• Data communication
• Portable audio players

What's a micro SD card?

The micro SD card is the smallest-format flash memory card in the consumer market. It measures 15 (L) x 11mm (W).

Memory Card Connectors

3M Card Connector microSD
