440N-Z21S16H, Allen Bradley Guardmaster 440N Series RFID Non-Contact Safety Switch, 24V dc, Plastic Housing, M12, Выключатель

Allen Bradley Guardmaster 440N-Z21S16H Sensaguard RFID Non-Contact Safety Switch

Ensure safe-access to machinery for personnel and keep your operations running smoothly with the Sensaguard 440N-Z21S16H RFID non-contact safety switch, 24 V dc with plastic housing, by Allen Bradley Guardmaster.

This cost-effective switch offers effective tamper resistance due to Radio Frequency Identification technology and has a large sensing field which provides superior tolerance to door misalignment. It has clear LED indication for fast troubleshooting and monitoring guard door status to help you minimise downtime. It also has an exceptional environmental rating of IP69K, ensuring that it is dust-tight and can withstand regular high-pressure wash downs. This makes it ideally suited for use in a broad range of industrial applications.

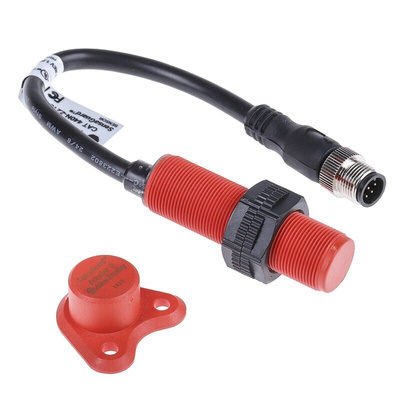

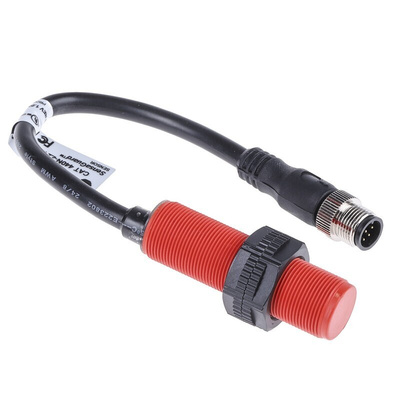

This reliable Sensaguard safety switch has a maximum sensing distance of 15mm and comes with an 18mm plastic barrel, an 18mm standard actuator, and a supply voltage rating of 24 V dc. It has a 6-inch pigtail and 8-pin micro M12 connector which allows quick, easy installation. It has an operating temperature range of -10°C to 55°C, 2 x PNP safety outputs and 1 x PNP auxiliary output.

Non-contact safety interlock switches improve protection for personnel by isolating the power supply to machinery when the guard door is released. This reduces the risk of injury to machine operators by preventing the machine from running while the barrier is open. These switches are experience less wear-and-tear and are long-lasting. Risk of debris contamination is decreased as there is no contact between the sensor and actuator. Sensaguard range non-contact switches can be conveniently connected in series to other devices such as e-stops and light curtains to give you a seamless and enhanced safety system.

Note: Stainless steel version is more suitable for use in harsh environments. This product is supplied with an actuator.

Features and Benefits:

• No dedicated controller is required
• Multiple sensing directions for maximum application flexibility
• Uses the standard proximity bracket
• Short-circuit and over-voltage protection provides optimal stability
• Can be connected to a standard safety relay such as the MSR126, MSR127, MSR200/300 Family, SmartGuard™ and Safety I/O Block
• Can be connected in series with other safety components (light curtain, E-stops, key interlock switches)
• 2 x PNP safety outputs and 1 x PNP auxiliary output
• Fast, simple troubleshooting and door status with LED indication located on the switch

Applications:

Sliding
Hinge
Lift-off machine guard doors

Certifications:

IP69K rated
IEC60947-5-3
IEC61508
EN954
CE certified
UL listed
TUV certified

What is RFID?

RFID stands for Radio Frequency Identification, which is a non-contact method of transferring digital data via radio frequency waves. Devices with this type of wireless communication usually consist of an RFID tag, an RFID reader, and an antenna. The tag transmits data when triggered by an electromagnetic pulse from the reader. This technology is used widely in many industries, for example with tracking inventory goods, personnel tracking and identification, and restricted area access. Non-contact switches with this technology are highly tamper-proof as they cannot be manipulated, providing a higher level of security.

Allen Bradley Guardmaster offer a huge range of machine safety and monitoring components to meet all of your application requirements and have been recognised for their excellence and innovation. Their top-quality, rigorously tested products will vastly improve the security of your machines and help you to maximise efficiency and productivity in your workplace.
