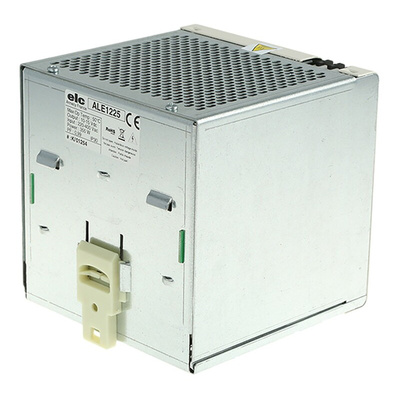

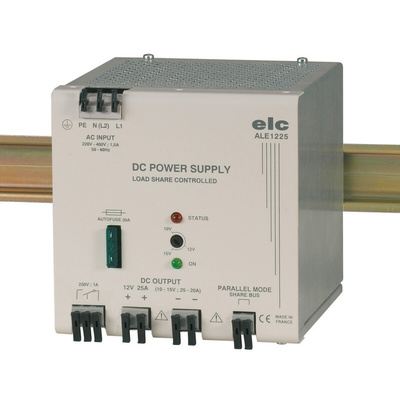

ELC DIN Rail Power Supply
The ELC ALE series DIN rail linear mode power supply has a universal input voltage ranging between 190VAC and 440VAC with an integrated active power factor correction (PFC). It has a relay status alert with a changeover contact. The rated output current is 25A at 12VDC output voltage. Adjustable output voltage ranging between 10VDC and 15VDC.
Features and Benefits
Adjustable output voltage
Double spring terminals
LED status indicator
Operation temperature ranging between 5°C and 45°C
Overload and short-circuit protection
Parallel active mode (N+1 cumulative power supplies)
Power rating is up to 300W
Ripple factor and noise is 3mV
Applications
Automation and process control
Industrial controls
Power management
Specifications
Technology: Switch Mode
Class: I
Primary Voltage Rating: 220-400V ±10%
Safety Standards
EN 61010-1, EN 61010-2-201, EN 62368-1
EMC Standard
EN 61000-6-2/4
