FLUKE 289/EUR, Fluke 289 Handheld Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 1000V ac Max - UKAS Calibrated, Мультиметр

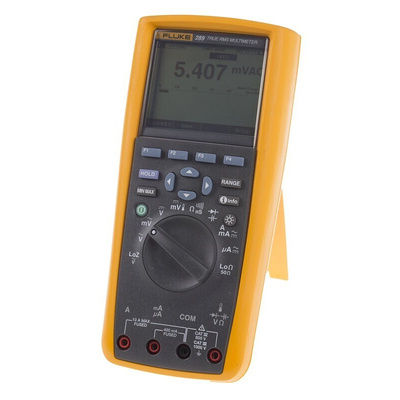

Fluke 289 Digital Multimeters

The Fluke 289 is optimised for industrial and field service professionals involved in the installation and maintenance or support of facilities or critical systems. It is the next generation of high performance industrial logging multimeters. Compatible with Fluke Connect, which is designed to solve complex problems in electronics, plant automation, power distribution and electro-mechanical equipment. The ability to log data and graphically review up to 10000 recorded events and logged readings with on-board TrendCapture. This lets the 289 be your watchdog for systems or processes while you are off doing other jobs.
With the Fluke 289 being Fluke Connect-compatible, you can set it up with the ir3000 FC wireless connector (Sold Separately - RS 811-1385) to communicate with your IOS and Android smart devices. This is through the Fluke Connect mobile app and monitor readings from a remote location or sharing the readings with your team in an instant anytime.

Features & Benefits

50 000 Count, 320 x 240 dot-matrix LCD display with white backlight, allowing clear multiple on-screen display of measurement information
0.025% basic DC accuracy
Logging function with TrendCapture plots measurements as single line to help detect anomalies (TrendCapture allows graphically view of logged readings without a PC)
F1 → F4 soft keys provide flexible user function menus
Navigation keys allow quick selection of menu options and scroll through information screens
Saved measurements allow operator to name and recall measurements made in the field
Upgradeable field and expandable meter as new capabilities are added
Record events and trends for troubleshooting intermittent problems or profiling loads
i-info button on-board helps screen for measurement functions
Internal memory allows standalone logging for up to 180 hours
Preferred measurement settings can be easily saved
True RMS AC voltage and current for accurate measurement of complex signals or non-linear loads. AC bandwidth specified to 100 kHz
DBV / dBm measurement
1 μV resolution in DC mV range
Current measurement 20 A (30 seconds momentary, 10 A continuous)
Peak capture function to record transients as fast as 250 μs
Continuity / Conductance / Capacitance
Resistance and continuity
Duty cycle & pulse width measurement
Min / Max / Average with Time Stamp to record signal fluctuations
Real time and elapsed time modes
CAT III 1000 V / CAT IV 600 V safety rated

Fluke 289 Extra Features

LoZ low input impedance function helps prevent false readings due to ’ghost voltage’
50 Ω range for motor winding and low ohm measurements
Low pass filter allows for accurate measurements of motor drives
Optical USB PC communication interface allows for easy PC download to document logged data with FVF software, available separately

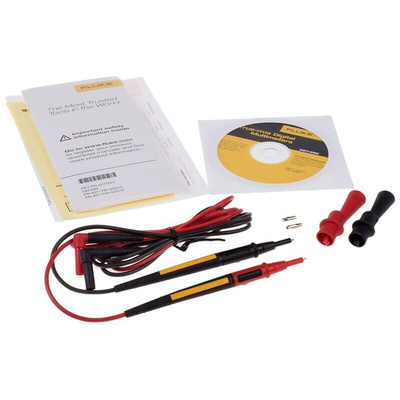

Supplied with

The Fluke 289 comes with:
Manual
6 x AA Batteries
Installed TL71 Silicone Test Leads
Probe Holder
2 x AC72 Alligator Clips

FLUKE Multimeter, Backlit Display, Shock and Vibration Resistant - FLUKE 289/EUR

Want to tackle industrial electrical issues – or even prevent them altogether? This advanced digital multimeter from FLUKE helps you out. Thanks to True-RMS technology and a low pass filter, you can trust it to give accurate readings for AC/DC voltage and current, as well as resistance, capacitance and frequency. Its peak capture mode lets it record transients as fast as 250μs, meaning no activity goes unnoticed. FLUKE's innovative TrendCapture feature, complete with zoom, gives you quick, easy-to-read graphical representations of your results, too. This lets you detect anomalies double quick. Plus, the device's handy low impedance voltage function ensures you can say goodbye to ghost voltages for good.

• Large backlit display is easy to read in all light conditions
• Resists shock and vibration, so you get durability in demanding environments
• Info button offers on-screen help to cut out confusion over device functions

Applications

• Industrial electronics
• Plant automation
• Power distribution
• Electro-mechanical equipment repair

What temperatures can I use this multimeter in?

Thanks to the product's operating temperature range of -20°C to +55°C, you can rest assured it's a great shout in challenging settings.
