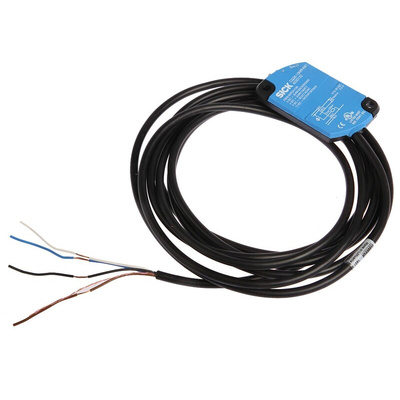

CQ28-10NPP-KW1, Sick Capacitive Block-Style Proximity Sensor, 10 mm Detection, PNP Output, 10 → 30 V dc, IP68, Датчик

CQ28 Capacitive Proximity Sensor

The CQ28 capacitive sensor features an innovative flat and thin housing shape. Designed to offer a solution for all non-contact level detection and control applications with a variety of media (liquids, solids, powders, etc.), it is intended for use in a wide variety of industry branches, including packaging, plastics, agriculture, food and beverage, etc.

Ultra thin plastic PBT housing for mounting flexibility
Adjustable sensing range from 1mm to 10mm (non-flush mounting)
High EMC immunity (to EN60947-5-2)
Teach-in set-up via pushbutton, or externally via wire (COM input)
NO and NC outputs (programmable)
Display LED
Reverse polarity protection
PNP or NPN versions available
Time delay: 300ms
Dimensions: H 46mm x W 5.5mm x D 28mm
