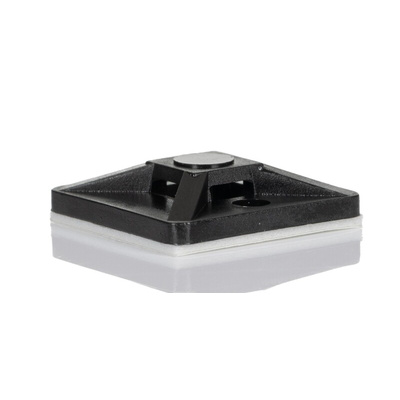

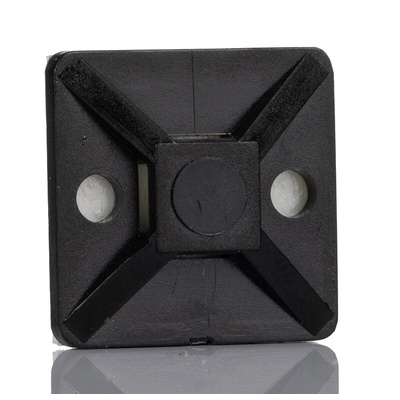

151-28320 MB3A-PA66-BK, HellermannTyton Self Adhesive Black Cable Tie Mount 19 mm x 19mm, 4.1mm Max. Cable Tie Width

MB Self Adhesive Cable Tie Mounts

HellermannTyton self-adhesive cable tie mounts that provide a fast and simple way of securing cable ties. MB series mounting bases allow ties to be inserted from all 4 sides. Ideal for cable management for use in control cabinets, telecoms equipment or domestic appliances where the use of holes, screws or nuts and bolts is impractical or undesirable.

Features and Benefits:
• Self adhesive
• Quick assembly in clean applications
• Allows 4 way entry for cable ties
• Ideal for use where panel access is limited or holes are undesirable
• Stabilise and secure wiring bundles
• Flame retardant (UL94 V2 rating without adhesive)
• Material: Nylon 66
• Provides secure fastening

The range includes the following cable tie mounts with various cable tie width acceptance, lengths x widths (mm) and colours:
131-0242 - Black 13 x 13
131-0243 - Black 19 x 19
131-0244 - White 19 x 19
131-0245 - Black 28 x 28
131-0246 - White 28 x 28
131-0247 - Black 38 x 38
131-0250 - Black 19 x 19
131-0251 - Black 28 x 28
131-0252 - Black 38 x 38
190-3326 – Natural 28 x 28
190-3354 - White 37.7 x 37.7
219-875 - Black 19 x 19
359-2063 - Natural 19 x 19
385-3885 - Natural 13 x 13
600-931 - Natural 19 x 19

Typical Applications
These cable tie mounts are suitable for the following markets and industries:
Rail Transportation
Electronics Industry
Aerospace Industry
Shipbuilding
Defence Industry

HellermannTyton Cable Tie Mount, Flame-Retardant, Pack of 100 - MB Series - 151-28320 MB3A-PA66-BK

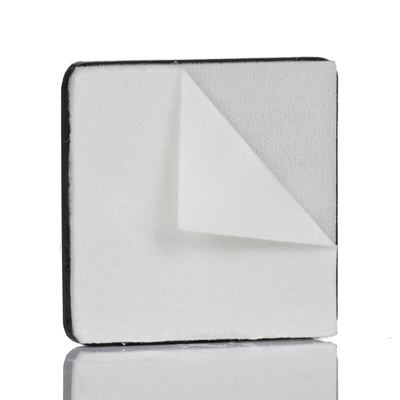

Make mounting bundled cables a piece of cake with this cable tie mount from HellermannTyton. Simply thread your chosen cable tie through two of the unit's four entry points and tighten it around your bunch of wires. The mount's sticky back lets you secure the bundle to a flat surface like a wall or floor. You can trust it to stay put once stuck in place as its high-strength rubber adhesive is peel-resistant.

Features & Benefits

• Offers some flame retardance so will help prevent the spread of flames in case of fire
• Pack of 100 means you get plenty for several jobs

Applications

• Schools and universities
• Telecommunications networks
• Factory floors

What are the benefits of this mount's PA66 construction?

As it's made of hardwearing PA66, you can trust this mount to stand up to impacts and abrasion and to tolerate a broad ambient temperature range between -40°C and +85°C without risk of failure.

151-28320 MB3A-PA66-BK (100) Datasheet

Line Drawing - MB3A
