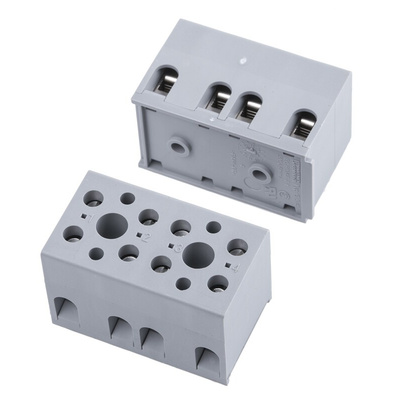

2716046, Phoenix Contact UK Series G 5/ 4 Non-Fused Terminal Block, 4-Way, 32A, 24 → 12 AWG Wire, Screw Down Termination

Phoenix Contact Non-Fused Terminal Block, M3 Screw Thread, 8mm Stripping Length - G 5/ 4 - 2716046

Need a way to achieve secure wire connections in your system? Choose this non-fused terminal block from Phoenix Contact. It's ideal for housing and organising up to eight connections in power distribution and industrial automation setups. As it's a fuse-free unit, it calls for minimal maintenance. The assembly handles the demands of factory settings, delivering reliable performance at temperatures between -5°C and +70°C.
To reduce the risk of electric shocks, polyamide insulation adds a safety barrier between you and live components. Hazardous overvoltages are kept at bay, thanks to inbuilt surge protection up to 6kV that fends off damage to downstream equipment. When it comes to mounting, this is a versatile device that's compatible with four different positions so you get a tailor-made fit for your setup.

Features & Benefits

• 32A current rating makes it ideal for high-powered systems
• Compatible with a broad range of wire sizes between 24 and 12AWG
• UL 94-V2-rated material means it self-extinguishes in one minute in the event of a fire
• Space-efficient dimensions of 22 (H) x 38 (W) x 24mm (D) maximise space in your setup

G 5/ 4 Data Sheet

Line Drawing - 2716046
