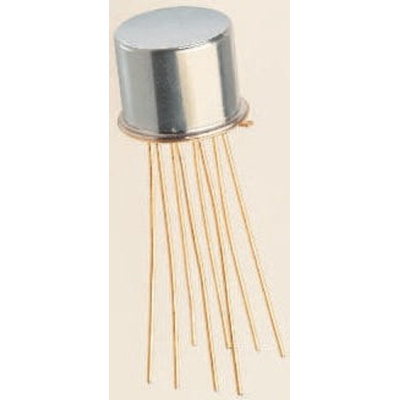

712-5, Teledyne DPDT PCB Mount, RF Relay 5V dc, Реле

0220958
Номер производителя: 712-5Производитель: Teledyne
Цена за шт.
19245.00 руб. (С НДС) *
Количество 5+ 10+ 25+ 50+
Цена 18504.00 руб. 17820.00 руб. 17184.00 руб. 16590.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

TO-5 RF Relay - 712 Series

Teledyne's TO-5 DPDT relays have become one of the industry standards for low level switching from dry circuit to 1 Amp. Designed for use when close PCB spacing is required, the 712 series have a low coil power dissipation in an ultra-miniature relay package.
In addition to the standard types there are the 712D and 712TN relays. The 712D relays have an internal discrete silicon diode which provides coil transient suppression. The 712TN-5 hybrid relay (stock number 758-2449) has an internal silicon diode and transistor driver. The integrated packaging of the relay with its associated semiconductor devices greatly reduces PCB floor space requirements as well as saving on installation time.
With a low inter-contact capacitance and contact circuit losses, the whole range of 712 series TO-5 relays are excellent ultra-miniature RF switches for frequencies well into the UHF spectrum (see datasheet for performance curves). A typical RF application for the TO-5 relay is in hand held radio transceivers, the combined features of good RF performance, small size, low coil power dissipation and high reliability make it a preferred method of Transmit/Receive switching.

Hermetically sealed
Excellent switching performance from d.c. to 1GHz
High resistance to shock and vibration
Gold plated contacts
Low insertion loss - isolation and intercontact capacitance of 0.4pF
Uni-frame design provides high magnetic efficiency and mechanical rigidity
High reliability and excellent resistance to environmental extremes
Low profile height of 6.99mm

Техническая спецификация
pdf712 Series Relay Data Sheet
pdfElectromechanical Relays Selection Guide Data Sheet
Высота:
6.99мм
Глубина:
9.4мм
Диапазон рабочих температур:
-55 → +85°C
Длина:
9.4мм
Катушка напряжение:
5В пост. тока
Конфигурация контактов:
DPDT
Материал контактов:
Позолоченный металлический сплав
Рабочая температура - максимальная:
+85°C
Рабочая температура - минимальная:
-55°C
Размеры:
9.4 x 9.4 x 6.99мм
Сопротивление катушки:
50 Ом
Тип монтажа:
Крепление на печатной плате
