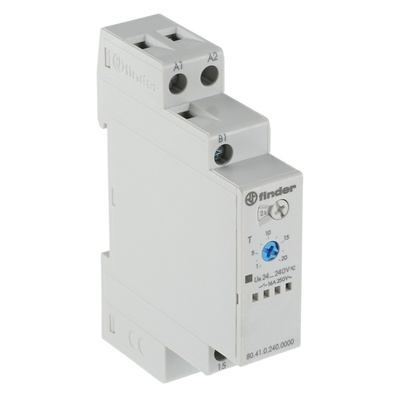

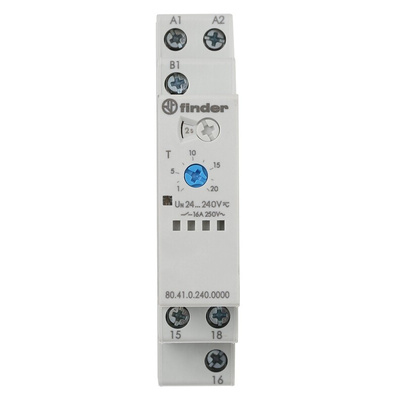

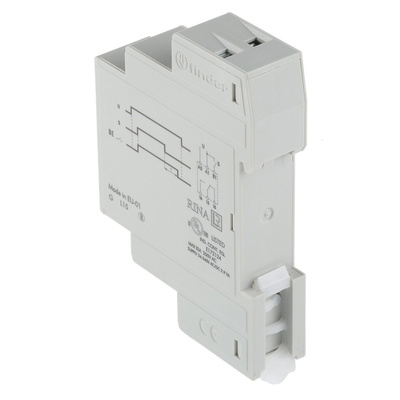

80.41.0.240.0000, Finder 80 Series Series DIN Rail Mount Timer Relay, 24 → 240V ac/dc, 1-Contact, 0.1 → 20 s, 0.1 →

Finder Single-function Timer relay

The Finder single-function timer relay is solid-state, compact equipment with high precision. It performs the function of providing OFF delay with control signal in the range of 0.1 seconds to 24 hours. This timer relay is easy to use and quick to configure. This time relay has two selectable rotary switches on the front of the unit to select the time delay range. It is affordability and high performance makes it ideal for a wide range of applications in process control.

Features and Benefits

6 time scales from 0.1 seconds to 24 hours like 0.1 seconds to 2 seconds, 1 second to 20 seconds, 0.1 minutes to 2 minutes, 1 minute to 20 minutes, 0.1 hours to 2 hours and 1 hour to 24 hours
1C/O SPDT contact configuration relay with output 16A
The supply rating is 24VDC to 240VDC and 24VAC to 240VAC
High input/output isolation
New multi-voltage versions with “PWM clever” technology
“Blade cross” - both flat blade and cross head screwdrivers can be used to adjust the range and function selectors, the timing trimmer and to disengage the rail mounting clip
Screw terminal type
35mm DIN rail mount
Contact material is silver tin oxide

Applications

Textiles
Chemical industries
Mining
Irrigation
Raw material handling
Food and beverages
Industrial process control

Certifications

CE certified
IP20 rated
EAC certified
RINA certified
cULus approved

Lloyd’s Register of Shipping
