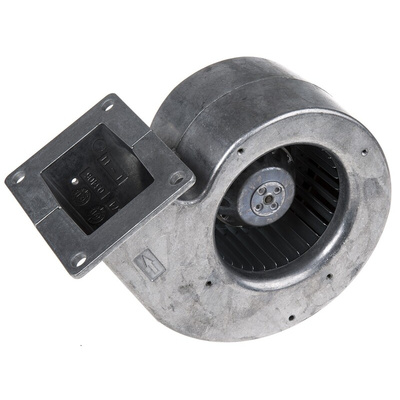

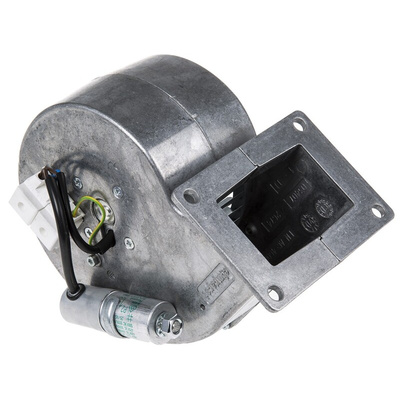

G2E108-AA01-50, ebm-papst G2E108 Series Centrifugal Fan, 230 V ac, 155m³/h, AC Operation, 168 x 159 x 115mm

ebm-papst Single Inlet Centrifugal Blowers

ebm-papst single inlet centrifugal blowers are high performance fans with an external rotor motor which offers the advantage of a matched rotor and impeller in a compact space saving design. Constructed from die cast aluminium, ebm-papst blowers are rugged and long-life.

Features and Benefits:
• High performance fans with an external rotor motor
• Motors are IP44 rated, sealed for life, maintenance free, class B insulation
• Impeller: forward curved multi-vane type
• Scroll: die cast with motor capacitor, mounting flange and finger guard/filter fixings
• Ball bearing type, may be mounted in any position

Note

To prevent overloading the motor, these blowers must be operated against the minimum static pressures.

ebm-papst Centrifugal Blower

Features and Benefits

• High performance fan with an external rotor motor
• Sealed for life
• Maintenance free
• Class B insulation
• Impeller is forward curved multi-vane type
• Scroll die-cast with motor capacitor, mounting flange and finger guard/filter fixings
• Ball bearing type and can be mounted in any position
• With housing (flange)

Applications

• Industrial use
• Central air conditioning units or building ventilation systems
• Automobile

Certifications:

• CE certified
• IP44 rated
• EN 60335-1

Approvals

CE
