SP 400-BLUE, Lascar Digital Voltmeter DC, LCD Display 3.5-Digits ±1 %, Вольтметр

Lascar Digital Voltmeter

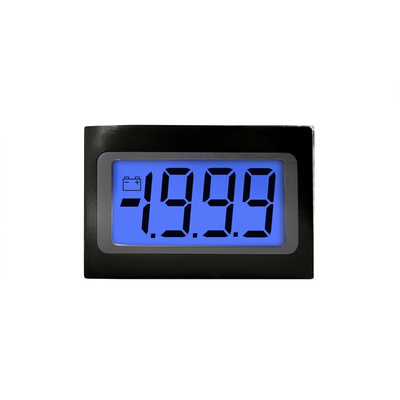

The Lascar digital voltmeter is a panel meter. It features a negative rail generator that helps to measure a signal referenced to its power supply GND. The blue LED backlighting ensures excellent readability under low light conditions. The module is easily fitted into a panel, using the fixing clip provided. Its low cost makes it suitable for high and low volume applications. The design of the panel meter’s housing ensures splash proofing using the supplied seal. Its full-scale reading is 200mVDC and supply voltage ranging between 3VDC to 7.5VDC(V+ to GND) or 6VDC to 15VDC(V+ to V-).

Features and Benefits

Digit height is 9.75mm (0.38in)
Auto-zero
Auto polarity
Programmable decimal points
Blue LED backlighting
Low battery warning
Operating temperature ranging between 0°C and 0°C

Applications

Precision instrumentation system
Power supply monitoring
Test boxes
Panel-mount indication
Low power voltage measurement

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

Datasheet
