BI8U-M18-AP6X-H1141, Turck BI8U Series Inductive Barrel-Style Proximity Sensor, M18 x 1, 8 mm Detection, PNP Output, 10 → 30 V dc,, Индуктивный датчик приближения

Uprox+ Factor 1 Barrel

High impact and thermal resistance

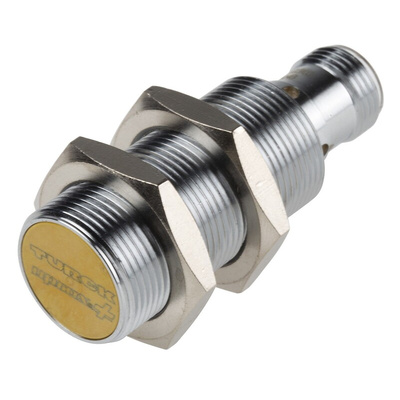

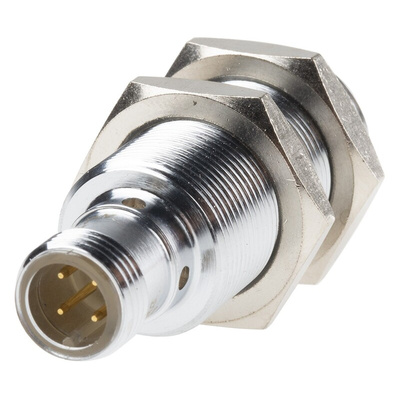

Turck Proximity Sensor, Chrome-Plated Housing, Short-Circuit Protection - Uprox Series - BI8U-M18-AP6X-H1141

To give your pick-and-place equipment a light touch, use this proximity sensor from Turck. Its inductive sensing technology means it quickly spots the presence of most ferrous metals, reliably detecting aluminium, brass, copper and iron objects. As no physical contact is needed, there's little risk of damage to sensitive components. This also gives the device an extended lifespan with a mean time to failure of 874 years, as there's minimal wear and tear. A handy yellow LED conveniently lets you know the module's switching state. You can put it to the test in harsh environments as it withstands vibration and shock.

Features & Benefits

• IP68-rated housing is dust-tight and protected against submersion in up to 1.5m of water for 30 minutes
• Corrosion-resistant chrome-plated housing for compatibility with humid settings
• Short-circuit protection reduces the chance of damage from power spikes
• Patented multi-coil system gives a reliable switching distance of 8mm
• Flush mounted to help reduce interference from neighbouring sensors

Applications

• Automated assembly lines
• Airports
• Lifting and hoisting equipment
• Security systems

Is this proximity sensor insulated?

Yes, it's insulated to make sure you're safely protected against electric shocks.

Note

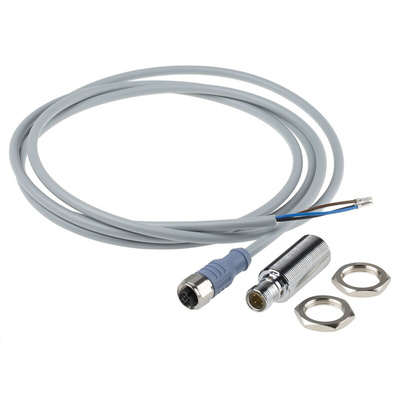

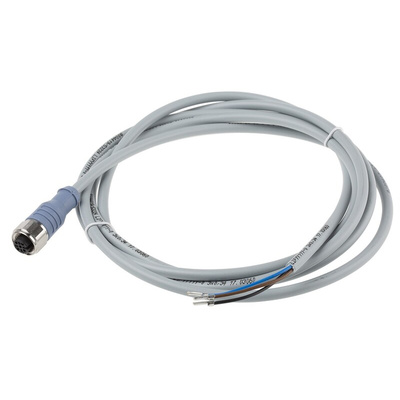

This is supplied with a 2 m Cable

Uprox Range

Extended sensing ranges
Sense all metals at the same distance - with no reduction factor
IP67 rating (Barrel is IP68)
High switching frequency
No load current 15mA max.
Operating Temperature Range -25 to +85°C
Short circuit protection Overload protection
Reverse polarity protection
Inherent weld field immunity

Datasheet
