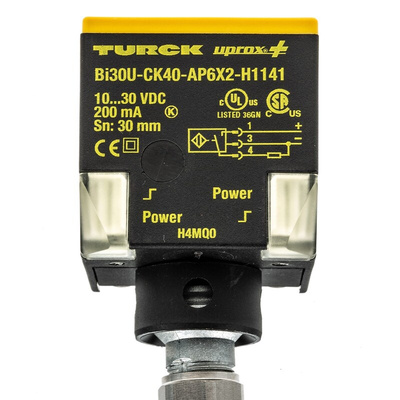

BI30U-CK40-AP6X2-H1141, Turck Inductive Block-Style Proximity Sensor, 30 mm Detection, PNP Output, 10 → 30 V dc, IP68, Индуктивный датчик приближения

Stubby Cube

PBT housing and sensing face. Stock number 405-7167
has a metal housing with duroplast sensing face providing high impact and thermal resistance
Adjustable sensing head, 5 positions

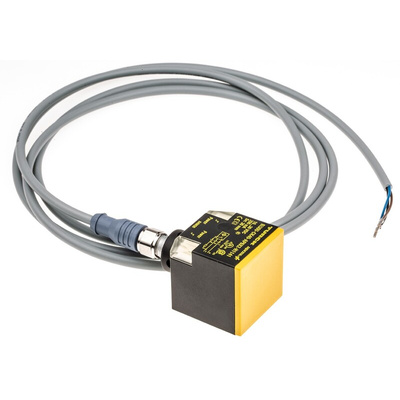

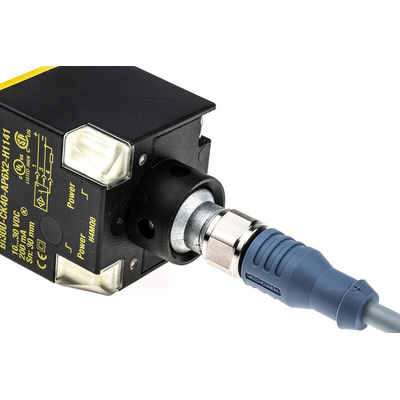

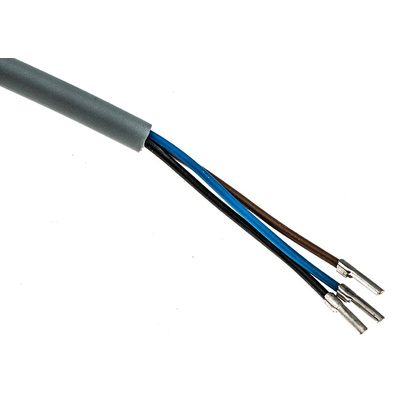

M12 connector termination. Supplied with 2m PUR single-ended, straight connector lead
3 wire dc
Yellow LED output status display
Green LED for power on, flashing indicates a short circuit
Mounting bracket included

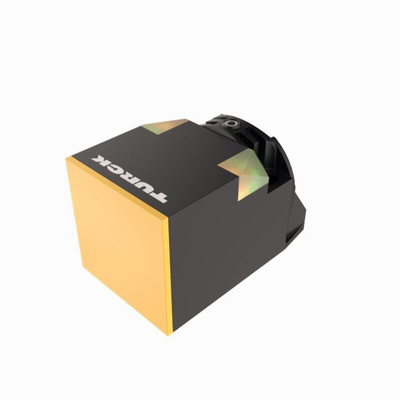

Turck Proximity Sensor, 5-Position Sensor Head, Rectangular PBT Housing - Uprox Series - BI30U-CK40-AP6X2-H1141

Keen to keep parts in your setup on the right path? Try this inductive proximity sensor from Turck. It quickly picks up on the presence of ferrous metal, such as aluminium, brass and copper, making it ideal for machine position verification. The unit's non-contact sensing in a 30mm detection range means you don't have to worry about damaging delicate components. As it doesn't physically make contact, it also cuts down on wear and tear, so you benefit from an extended lifespan from the device. A rotating head gives you the freedom to choose from five sensing positions to best suit your system.

Features & Benefits

• IP68-rated enclosure that's dust-tight and submersible in up to 1.5m of water for 30 minutes
• Ferriteless 3-coil system detects all metals at the same switching distance for ease of use
• Durable PBT housing protects against abrasion and bumps
• Resists shock and vibration, making it compatible with harsh operating conditions

Applications

• Robotics systems
• Automated assembly lines
• Packaging facilities
• Aerospace industry

Is this proximity sensor protected against power faults?

Yes, the product is protected against short circuits and overload, which reduces the chance of damage if there's an electrical fault.

Uprox Range

Extended sensing ranges
Sense all metals at the same distance - with no reduction factor
IP67 rating (Barrel is IP68)
High switching frequency
No load current 15mA max.
Operating Temperature Range -25 → +85°C
Short circuit protection Overload protection
Reverse polarity protection
Inherent weld field immunity

Inductive sensor Bi30U-CK40-AP6X2-H1141 Data Sheet
