NI30U-M30-AP6X-H1141, Turck NI30U Series Inductive Barrel-Style Proximity Sensor, M30 x 1.5, 30 mm Detection, PNP Output, 10 → 30 V, Индуктивный датчик приближения

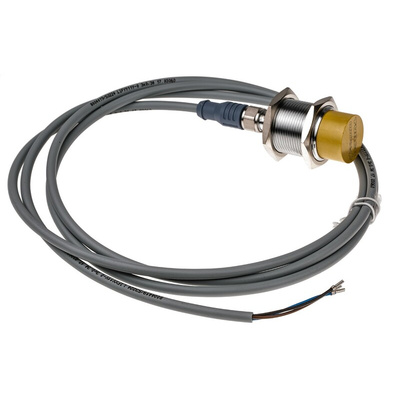

Turck Proximity Sensor, 1kHz Switching Frequency, M12 Male Connector - Uprox+ Series - NI30U-M30-AP6X-H1141

Stay in touch with the status of your setup without making contact, thanks to this proximity sensor from Turck. Using an electromagnetic field, the device detects metal objects that can disrupt the efficient operation of automated systems. A yellow LED indicates switching states to keep you in the loop and simplify troubleshooting. Chrome-plated brass housing resists corrosion, so it's a reliable partner in damp or humid industrial setups. The unit handles harsh temperatures, performing reliably in a wide range between -30°C and +85°C.

Features & Benefits

• Short-circuit protection to help reduce damage and downtime
• M30 x 1.5 thread size matches standard fittings
• Preterminated M12 connector for hassle-free installation

Applications

• Factory automation
• Pharmaceutical manufacturing
• Food and beverage processing
• Security systems

Can I wash this barrel-style proximity sensor without damaging it?

Yes, as when mated, the barrel carries an IP68 rating. This means it's dust-tight and waterproof for up to 30 minutes in 1.5m of water. As a result, you can clean it in settings such as hospitals and food production lines without worrying about it impacting performance.

What's the detection range of this proximity sensor?

The device has a 30mm detection range, so it's well-suited to short-distance sensing applications.

Uprox Range

Extended sensing ranges
Sense all metals at the same distance - with no reduction factor
IP67 rating (Barrel is IP68)
High switching frequency
No load current 15mA max.
Operating Temperature Range -25 to +85°C
Short circuit protection Overload protection
Reverse polarity protection
Inherent weld field immunity

Datasheet
