NI30U-M30-AP6X, Turck Inductive Barrel-Style Proximity Sensor, M30 x 1.5, 30 mm Detection, PNP Output, 10 → 30 V dc, IP68, Индуктивный датчик приближения

Uprox+ Factor 1 Barrel

High impact and thermal resistance

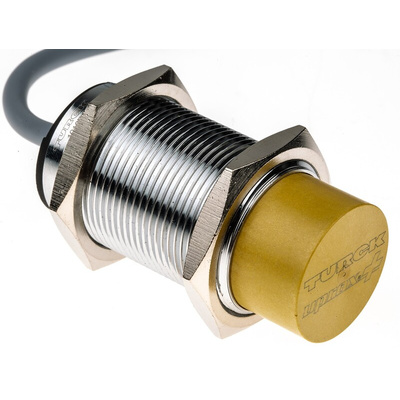

Turck Proximity Sensor, Barrel Body Style, IP68 - NI30U-M30-AP6X

This high quality Turck inductive proximity sensor is designed to provide reliable detection in various industrial settings. With a detection range of 30mm, an IP68 rating, and a rugged chrome plated brass construction, this sensor is ideal for use in automation, electronics, electrical, and mechanical applications.

Features & Benefits

• IP68 rated sensor ensures protection against dust and water, making it suitable for harsh environments
• Chrome plated brass housing material for durability and longevity in industrial settings
• Non flush mounting design allows for easy installation and maintenance
• PNP output sensor provides a reliable switching signal for seamless integration into existing systems
• 30mm detection range sensor offers precise object detection for enhanced automation processes
• High temperature sensor with a maximum operating temperature of +85°C for reliable performance in demanding conditions
• Industrial grade proximity sensor designed for heavy duty applications

Applications

• Ideal for automation systems for precise object detection
• Used in electronics manufacturing for component sensing
• Suitable for electrical panel applications for proximity detection
• Commonly used in mechanical systems for position sensing

Can it withstand extreme temperatures?

Yes, the Turck proximity sensor is designed to operate in temperatures ranging from -30°C to +85°C.

Will it provide accurate detection in industrial environments?

Yes, the inductive proximity sensor offers a 30mm detection range for reliable object sensing.

Is it suitable for use in automation applications?

Yes, the PNP output sensor is perfect for seamless integration into automation systems.

Does it have a durable construction for industrial settings?

Yes, the chrome-plated brass housing ensures longevity and durability in harsh industrial environments.

Can it be easily installed in existing systems?

Yes, the non-flush mounting design allows for easy installation and maintenance.

Uprox Range

Extended sensing ranges
Sense all metals at the same distance - with no reduction factor
IP67 rating (Barrel is IP68)
High switching frequency
No load current 15mA max.
Operating Temperature Range -25 to +85°C
Short circuit protection Overload protection
Reverse polarity protection
Inherent weld field immunity

Inductive sensor NI30U-M30-AP6X Data Sheet

Inductive sensor NI30U-M30-AP6X Drawing
