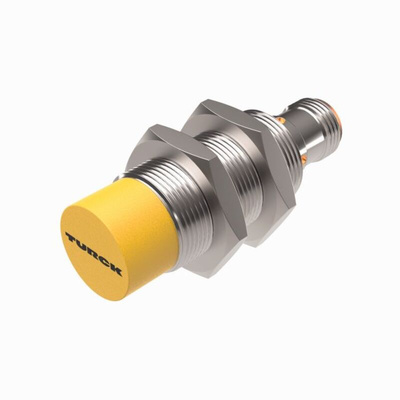

NI15U-M18-AP6X-H1141, Turck Inductive Barrel-Style Proximity Sensor, M18 x 1, 15 mm Detection, PNP Output, 10 → 30 V dc, IP68, Индуктивный датчик приближения

Turck Proximity Sensor, 1.5kHz Switching Frequency, Short Circuit Protection - Uprox Series - NI15U-M18-AP6X-H1141

Pick up on rogue elements in your industrial conveyor setup with this proximity sensor from Turck. It uses an electromagnetic field to identify any metal objects and alert you to their presence. A yellow LED lets you know its switching status in a flash for ease of monitoring. As this device works without making contact with an object, there's less chance of wear and machine damage. Its durable chrome-plated brass housing stands up to corrosion and impact. The unit holds its own in challenging environments, thanks to its wide operating temperature range between -30°C and +85°C.

Features & Benefits

• IP68 rating means it's dust-tight and protected against immersion in 1.5m of water for up to 30 minutes
• MTTF of 874 years for an extended service life
• Insulated for protection against electric shock

Applications

• Automated assembly lines
• Food and beverage production
• Medical and pharmaceutical industries
• Electronics manufacturing

Is this proximity sensor protected against short circuits?

Yes, the component features short circuit protection to minimise the risk of electrical damage to your machinery.

Uprox Range

Extended sensing ranges
Sense all metals at the same distance - with no reduction factor
IP67 rating (Barrel is IP68)
High switching frequency
No load current 15mA max.
Operating Temperature Range -25 to +85°C
Short circuit protection Overload protection
Reverse polarity protection
Inherent weld field immunity

Datasheet
