NI6U-EG08-AP6X, Turck Inductive Barrel-Style Proximity Sensor, M8 x 1, 6 mm Detection, PNP Output, 10 → 30 V dc, IP68, Индуктивный датчик приближения

Uprox+ Factor 1 Barrel

High impact and thermal resistance

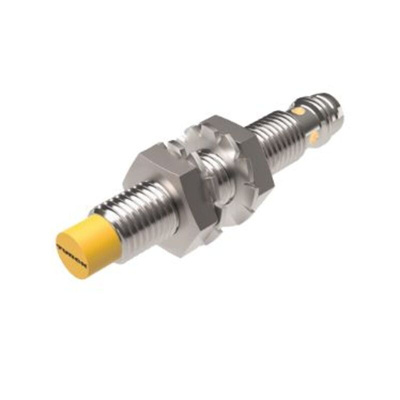

Turck Proximity Sensor, Barrel Body Style, IP68 - NI6U-EG08-AP6X

This Turck proximity sensor with metal housing and IP68 rating is a high quality inductive sensor designed for use in automation, electronics, electrical and mechanical industries. With a 6mm detection range and PNP output, this sensor ensures reliable performance in a variety of applications.

Features & Benefits

• Detects metal objects contactless and wear free
• High switching frequency for efficient operation
• Integrated predamping protection for increased reliability
• Provides a high degree of protection with an IP68 rating
• Small metal free zones for improved precision
• Suitable for non flush mounting applications
• Operates at a voltage range of 10 30 V DC
• Offers a switching current of 150 mA for versatile use

Applications

• Suitable for material handling equipment
• Perfect for packaging machinery
• Ideal for Industrial automation systems

Can it detect metal objects without direct contact?

Yes, the proximity sensor can detect metal objects contactlessly.

Will it work in high-speed manufacturing environments?

The sensor's high switching frequency makes it suitable for high-speed applications.

Is it suitable for harsh industrial environments?

Yes, the sensor's metal housing and IP68 rating ensure durability in tough conditions.

Can it be used for position sensing in robotics?

Yes, the sensor is ideal for precise position sensing in robotic applications.

Does it require frequent maintenance?

No, the wear-free design of the sensor reduces the need for maintenance.

Uprox Range

Extended sensing ranges
Sense all metals at the same distance - with no reduction factor
IP67 rating (Barrel is IP68)
High switching frequency
No load current 15mA max.
Operating Temperature Range -25 to +85°C
Short circuit protection Overload protection
Reverse polarity protection
Inherent weld field immunity

Datasheet
