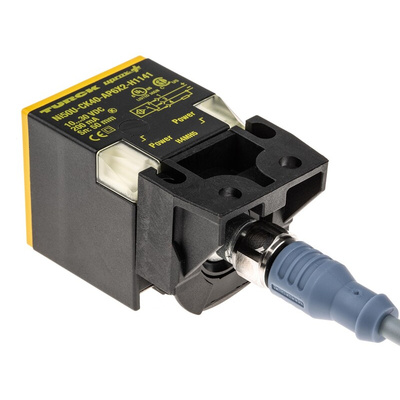

NI50U-CK40-AP6X2-H1141, Turck NI50U Series Inductive Block-Style Proximity Sensor, M12 x 1, 50 mm Detection, PNP Output, 10 → 30 V dc,, Индуктивный датчик приближения

Turck Proximity Sensor, PBT Housing, 200mA Switching Current - Uprox+ Series - NI50U-CK40-AP6X2-H1141

Count on this inductive proximity sensor from Turck to spot intruders in your system. It gets a fix on unwanted items to help prevent production mishaps in automated processes. The clever piece of kit detects ferrous and non-ferrous metals at the same 50mm range, so there's no need to sweat over reduction calculations and setup adjustments. As it's a non-contact device, you can use it on lines with delicate or unstable objects. Its tough PBT housing shrugs off the impacts of heavy-duty environments, and it works like a charm in temperatures between -30°C and +85°C.

Features & Benefits

• IP68-rated housing is dust-tight and waterproof for 30 minutes in 1.5m of water for use in washdown areas
• Immune to surrounding magnetic fields for optimal performance
• Flexible mounting enables customised installation

Applications

• Assembly and packaging lines
• Medical imaging equipment
• Food and beverage industry
• Automotive manufacturing

How do I connect this proximity sensor to my automated system?

Due to the three-wire design and pre-terminated M12 connector, installation is straightforward. Just attach the wires to your control module, position or mount the component, and plug it in.

Uprox Range

Extended sensing ranges
Sense all metals at the same distance - with no reduction factor
IP67 rating (Barrel is IP68)
High switching frequency
No load current 15mA max.
Operating Temperature Range -25 → +85°C
Short circuit protection Overload protection
Reverse polarity protection
Inherent weld field immunity
