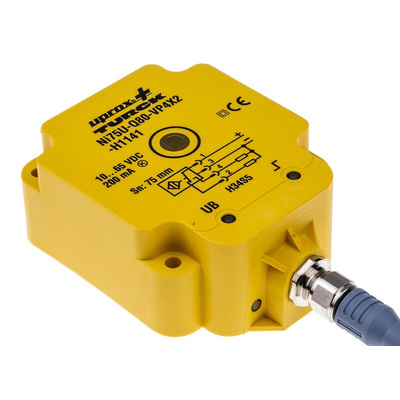

NI75U-Q80-VP4X2-H1141, Turck Inductive Block-Style Proximity Sensor, 70 mm Detection, PNP Output, 10 → 65 V dc, IP68, Индуктивный датчик приближения

Large Block

80 x 80mm PBT housing and sensing face
Fixed terminal base for quick sensor replacement
Connection via terminal compartment
3 wire dc
Yellow LED output status display
Green LED for power on, flashing indicates a short circuit

Turck Proximity Sensor, Rectangular PBT Housing, With LED Indicators - Uprox Series - NI75U-Q80-VP4X2-H1141

Use this proximity sensor from Turck to pick up on the presence of ferrous metal objects. It's got a light touch, thanks to its contactless detection within a 70mm range that minimises the chance of damage to delicate items. A robust PBT housing stands up to impact and wear, so it goes the extra mile in demanding settings. The unit's four LEDs keep you in the know with a prime view of its switching status and supply voltage. This factor 1 sensor resists magnetic fields and maintains the same sensing distance for all metal types, which gives you superior flexibility in your setup.

Features & Benefits

• Broad operating voltage range between 10 and 65V DC for compatibility with numerous supply sources
• IP68-rated enclosure is dust-tight and protected when immersed in up to 1.5m of water for half an hour
• Light weight of 369g puts minimal strain on your equipment
• Short-circuit protection safeguards against damage from power faults

Applications

• Process control
• Logistics
• Industrial manufacturing
• Security systems

What's the lifespan of this proximity sensor?

You can rest assured this sensor stands the test of time as it has an MTTF of 874 years when operating in temperatures of +40°C.

Uprox Range

Extended sensing ranges
Sense all metals at the same distance - with no reduction factor
IP67 rating (Barrel is IP68)
High switching frequency
No load current 15mA max.
Operating Temperature Range -25 → +85°C
Short circuit protection Overload protection
Reverse polarity protection
Inherent weld field immunity
