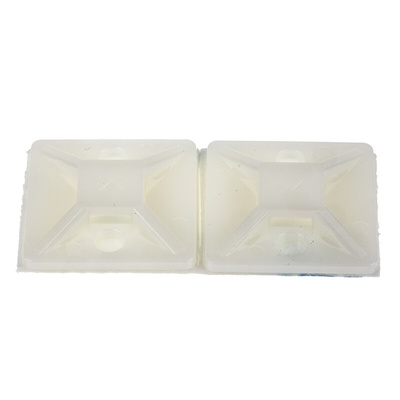

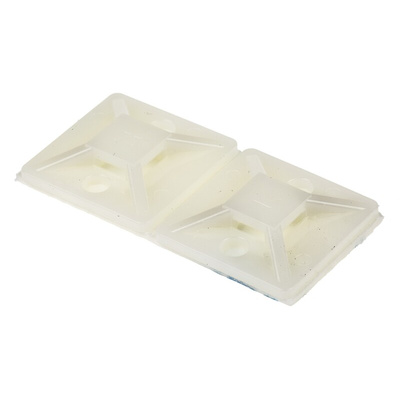

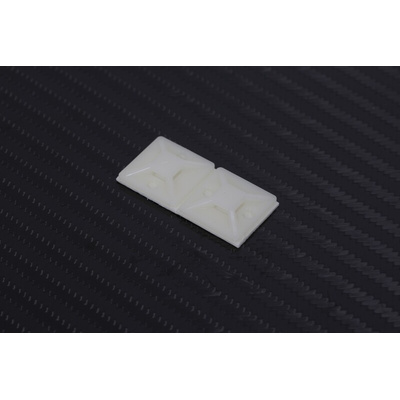

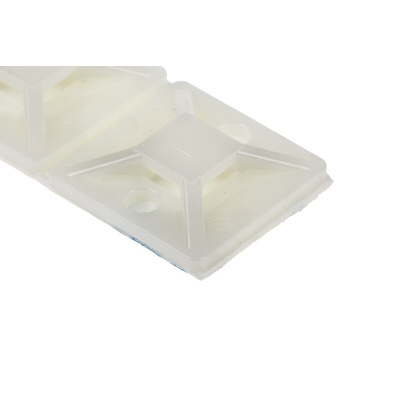

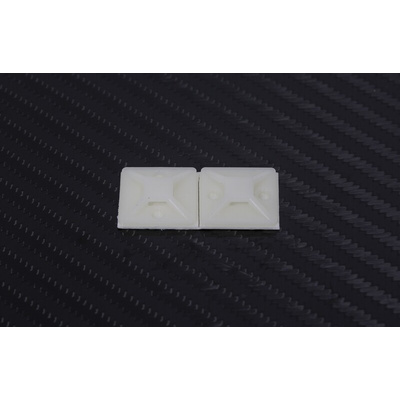

RS PRO Self Adhesive Natural Cable Tie Mount 19.5 mm x 19.5mm, 4.6mm Max. Cable Tie Width

RS PRO Self-Adhesive Cable Tie Mount 19.5 x 19.5mm

This adhesive cable tie base is designed as an anchor point to attach cables to another surface using a cable tie. For increased support, mounting holes are provided for screws. Its 4-way design enables you to thread cable ties either vertically or horizontally once mounted.
The cable tie holders are manufactured from chemically resistant Nylon 6.6 (also known as Nylon 66) classified to UL 94V-2, making them ideal for use where fire resistance is critical. Cable tie mounts have been designed specifically to be used with cables and wires to secure, identify and tidy cables.

Features and Benefits

Cable tie mount
Dimensions of 19.5 x 19.5 x 3.9mm
Suitable for cable ties up to 4.6mm in width
Thread cable ties vertically or horizontally
Strong adhesive foam base
Screw holes for additional support
Natural colouring
Self-extinguishing UL 94 V-2
Supplied in packs of 50

FAQs

What is Nylon 6.6?

Nylon 66 is also known as Polyamide 66 or PA 66 and is a semi-crystalline engineering plastic. This plastic is both hard and rigid with good abrasive and wear resistance along with low frictional properties. It also has good thermal dimensional stability which is the degree to which a material maintains its original dimensions when subjected to changes in temperature and humidity. This nylon type is frequently used when high mechanical strength, rigidity, good stability under heat or chemical resistance are required.

Why RS PRO?

RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.

Dimensional Drawing

RS PRO Datasheet
