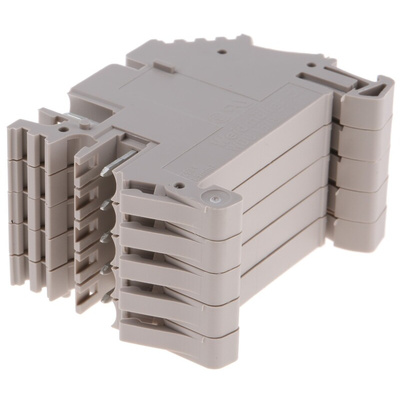

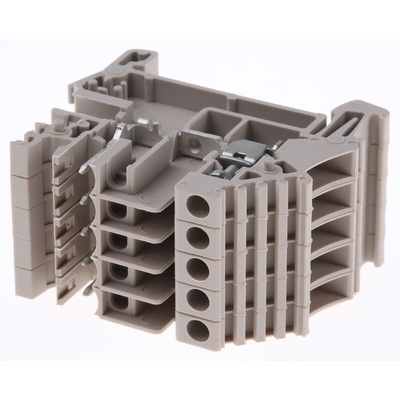

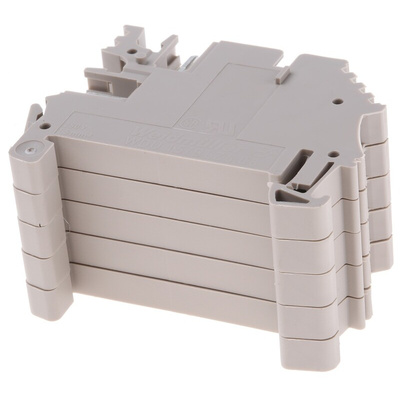

1577340000, Weidmuller 1-Contact Interface Module, Clamping Yoke Connector, DIN Rail Mount, 16A, Модуль

BL Terminal Series Compatible

TS32 ’G’ rail and TS35 ’Top Hat’ rail mounted terminals for use with the BL connector system enabling quick changing of functional units. The cable mounted BL units may be fitted to either the top or side of the terminal block.

All materials comply with RoHS requirements and have been tested to current environment guidelines.

Features:

• Rated voltage: 250Vac
• Rated current: 16A
• Nominal conductor csa: 1.5mm2
• Continuous operating temperature: -50 °C to 100 °C
• Material: PA 66
• To use with terminals

For TS32 ’G’ rail use WDU1.5/BLZ/32 232-572
For TS35 ’Top Hat’ rail use WDU1.5/BLZ/35 232-588

Screw Connection
Easy application
250 V ac Rated Voltage
16 A Rated Current

Product Application Information

BL series compatible accessories suited to DIN Rail terminals and BL connector systems. To make sure make sure that you have the right part, use our compatibility table as a guide.
TS35 'Top Hat' rail designed to be used with WDU1.5/BLZ/35

BL Series Connector Refeference
