1SVR427030R0000 CP-E 24/0.75, ABB CP-E Switch Mode DIN Rail Power Supply, 90 → 264V ac ac, dc Input, 24V dc dc Output, 750mA Output, 18W, Блок питания

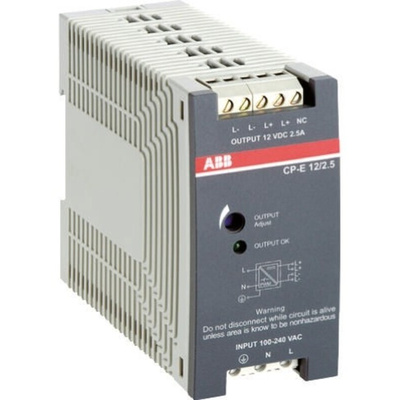

Switch mode power supplies CP-E series

The CP-E range of DIN Rail PSUs from ABB offer enhanced functionality. The switch mode power supply units are economic and can be operated at an ambient temperature of up to 70°C. With adjustable output voltages, they can also be adapted to the application required.
This range offers output voltages from 5 V dc to 48 V dc at output currents of 06.25 A to 20 A. Thermal efficiency of up to 90% means that there is low power and heat dissipation allowing operation of the PSU without any forced cooling.
The switch mode power supply can be snapped onto a DIN Rail according to IEC/EN 60715, and be mounted horizontally.

Features and Benefits

•Output voltage 5 V, 12 V, 24 V, 48 V dc
•Adjustable output voltages
•Output current 0.625 A / 0.75 A / 1.25 A / 2.5 A / 3 A / 5 A / 10 A / 20 A
•Power range 18 W, 30 W, 60 W, 120 W, 240 W, 480 W
•Wide range input or auto select input
•High efficiency of up to 90%
•Low-power dissipation and low heating
•Free convection cooling (no forced cooling with ventilators)
•Ambient temperature range during operation -25°C to 70°C
•Open-circuit, overload and short circuit stable
•Integrated input fuse
•U/I characteristic curve on devices < 18 W (fold-forward behaviour at overload – no shutdown)
•Redundancy units offering true redundancy
•LED for status indication
•Signalling output/contact for output voltage OK
•Transistor on 24 V devices > 18 W and < 120 W
•Relay on 24 V devices ≥ 120 W

Product Application Information

The primary switch mode power supply offers two voltage input ranges, enabling the supply with AC or DC. Furthermore it is equipped with two generous capacitors, which ensure mains buffering of at least 30 ms (at 230 V ac). These power supplies can be used worldwide also in high fluctuating networks and battery powered plants.

Approvals

UL 508, UL 60950, GOST, CCC, CE

Primary switch mode power supplies CP-E range - Economy Technical data
