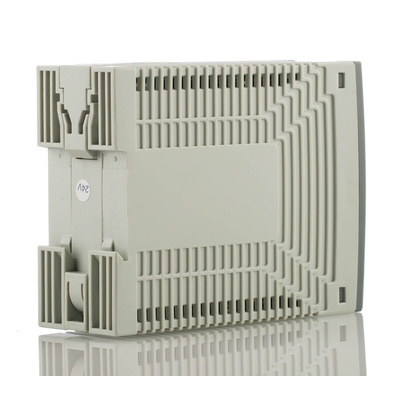

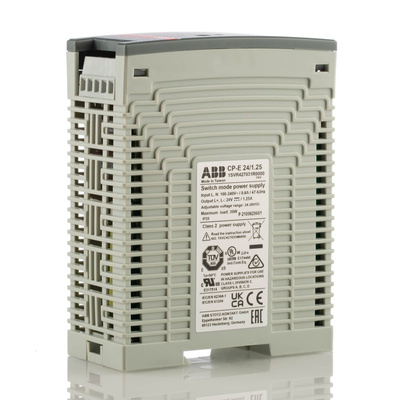

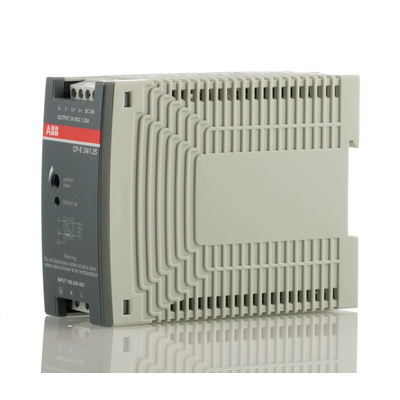

1SVR427031R0000 CP-E 24/1.25, ABB CP-E Switch Mode DIN Rail Power Supply, 85 → 264V ac ac, dc Input, 24V dc dc Output, 1.25A Output, 30W, Блок питания

ABB DIN Rail Power Supply, 1.25A Output Current, 24V DC Output Voltage - CP-E Series - 1SVR427031R0000 CP-E 24/1.25

Convert incoming electrical power into the right voltage, current and frequency for your industrial equipment with this DIN rail power supply from ABB. You can manually adjust the output voltage to between 24 and 28V DC using the unit's front-facing rotary potentiometer. For versatility, the power supply features two voltage input ranges so you can use it with both AC and DC currents. Low power dissipation makes the unit efficient, as very little current leaks out.

Features & Benefits

• Convection cooling, so no need for forced cooling with a ventilator
• Integrated input fuse that helps prevent short circuits and overcurrent from damaging equipment
• LED indicator turns green when output voltage is correct, for quick visual status indication
• Two capacitors ensure mains buffering, so suitable for fluctuating networks and worldwide use

Applications

• Motor starters
• Commercial desktop power supplies
• Automotive industry
• Heating and cooling systems

How do I mount this power supply onto a DIN rail?

This power supply simply snaps onto a DIN rail, so installation is quick and tool-free. It's also easy to remove by pressing the unlock button on the device.

Datasheet

0234408_Brochure_en

0234408_Catalogue_en

0234408_Instruction Sheet_en
