Cropico RBC5-A Decade Box, Decade Box Type Resistance, Resistance Resolution 0.1Ω, Best Maximum Resistance Accuracy ±5%, Декадный магазин

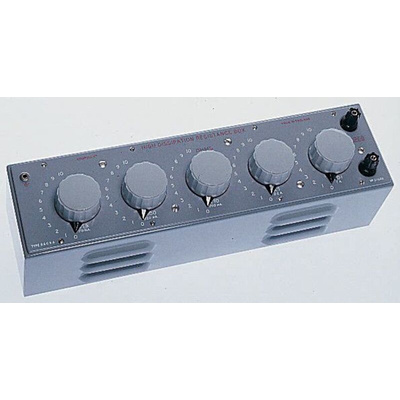

Cropico Decade Resistance Box

The Cropico high-dissipation decade resistance box with UKAS calibrated is constructed using the same high-quality components and housed in a light alloy ventilated case. Its required resistance is selected by the 6 rotary switches. This is fully serviceable and can be repaired in our workshop should the more enthusiastic user damage the units with high overloads.

Features and Benefits

Five decades are 10 x 0.1ohm, 10 x 1ohm, 10 x 10ohm, 10 x 100ohm and 10 x 1kohm
Accuracy is 5%
Resistance resolution is 0.1ohm
Temperature coefficient is ±3 ppm/°C, ±5 ppm/°C
Length of 130mm, width of 390mm and height of 105mm
Power rating is 5W
Operating temperature ranging between -50°C and 125°C

Applications

Electrical industrial laboratories
Electronic industrial laboratories
Engineering departments
Calibration houses
Workshops

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
