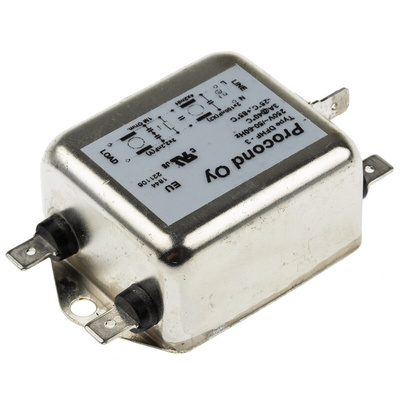

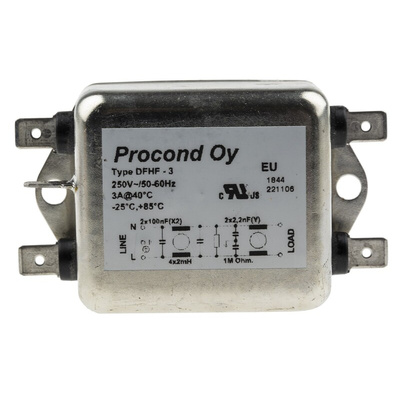

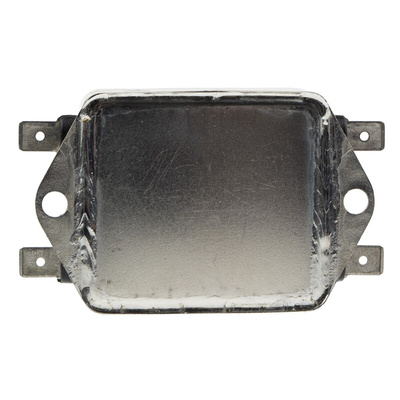

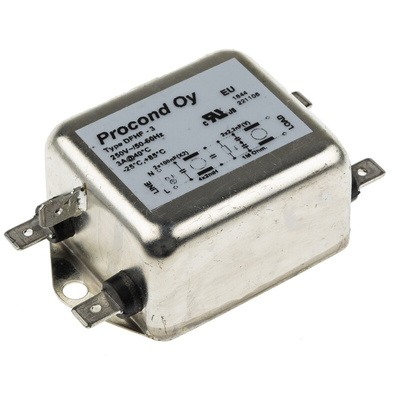

RS PRO 3A 250 V ac 400Hz, Chassis Mount RFI Filter, Tab, Фильтр

RS PRO Chassis Mounting RFI Filter, 3 A, 250 V AC, 400 Hz

Protect your electrical circuitry from RFI (radio frequency interference) with this filter from RS PRO. It will attenuate intensive, high-frequency noise in both the common (between the power line and ground) and differential (between the power line and neutral) modes, so it's highly versatile and suited to sensitive equipment.
The component has tabs intended for soldering or push-on connections, which allows for an easy and secure setup. It's also designed for chassis mounting, so it can be installed on a panel or similar surface. The capacitor discharge resistor will prevent any electrical hazards when the filter is turned off, ensuring the safety of your work environment. The filter can be used to prevent data loss, degradation, or malfunction in medical equipment, telecommunications devices and household appliances.

Features and Benefits

• Capacitance of 0.1 x 2 μF (microfarads), 2200 x 2 pF (picofarads)
• Dimensions of 46 (length) x 76 (depth) x 28 mm (height)
• Inductance of 2 x 2 mH (millihenry)
• Leakage current of 0.2 mA (milliamperes)
• Current rating of 3 A
• Voltage rating of 250 V (voltz) AC
• Dimensions of 76 (depth) x 28 (height) x 46 mm (length)
• Operating frequency of 400 Hz (hertz)
• Operating temperature range of -25°C to +85°C
• Chassis mounting
• Two stages
• Resistance of 1 MΩ
• Tab termination style

Approvals

CSA; VDE; SEMKO
